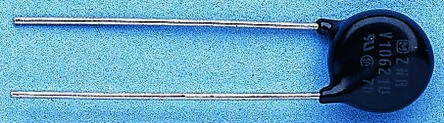

ERZE14A271

PANASONIC ELECTRONIC COMPONENTS  ERZE14A271  TVS压敏电阻, 浪涌吸收器, ZNR E14系列, 175 V, 225 V, 455 V, 片状 16.5mm, 金属氧化物压敏变阻器 MOV

金属氧化物变阻器 ZNR 系列 E14

相对于紧凑尺寸，浪涌电流和能量处理能力更高。

各种间距、尺寸和电压

符合 RoHs

欧时:
Panasonic ZNR 系列 1nF 100A 455V 盘型变阻器 ERZE14A271, 16.5 x 5.4mm

e络盟:
PANASONIC ELECTRONIC COMPONENTS  ERZE14A271  TVS压敏电阻, 浪涌吸收器, ZNR E14系列, 175 V, 225 V, 455 V, 片状 16.5mm, 金属氧化物压敏变阻器 MOV

艾睿:
When different voltages are applied to this ERZ-E14A271 MOV from Panasonic will change resistance. This part has a pitch of 10 mm. This device&s;s clamping current is 100 A and clamping voltage is 455 V. Its maximum surge current is 10000 A. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. Its capacitance value is 0.001uF. This varistor has a voltage of 270 V. The maximum AC voltage rating is 175 VAC and the maximum DC voltage rating is 225 VDC. This device is made with metal oxide technology. This product is 19.5 mm tall and 5.6 mm deep with a diameter of 16.5 mm.

安富利:
Var MOV 175VAC/225VDC 10000A 270V Radial Bulk

Chip1Stop:
Var MOV 175VAC/225VDC 10000A 270V Radial Bulk
