ELXZ630ELL680MH12D

UNITED CHEMI-CON  ELXZ630ELL680MH12D  铝电解电容, 68uF, 63V

68 µF 63 V 铝电解器 径向，Can - 105°C 时为 3000 小时

得捷:
CAP ALUM 68UF 20% 63V RADIAL

贸泽:
Aluminum Electrolytic Capacitors - Leaded 63volts 68uF 8X12

e络盟:
铝电解电容, 68uF, 63V

艾睿:

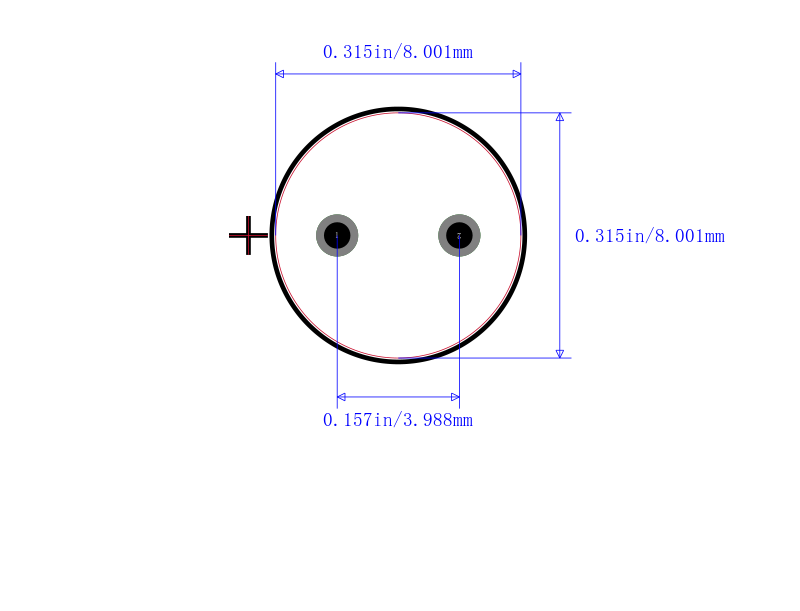

Who knew generating high heat for a given current level would be this easy? Pick up this unique electrolytic ELXZ630ELL680MH12D aluminum capacitor from United Chemi-con for its relatively high ESR! It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. The ELXZ630ELL680MH12D aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its capacitance value is 68uF. Its leakage current is 3@2Min μA. This product is 12 mm tall with a diameter of 8 mm.

Chip1Stop:
Cap Aluminum Lytic 68uF 63V 20% 8 X 12mm Radial 3.5mm 405mA 3000h 105℃ Bulk

Verical:
Cap Aluminum Lytic 68uF 63V 20% 8 X 12mm Radial 3.5mm 405mA 3000h 105C Automotive Bulk

Electro Sonic:
Cap Aluminum Lytic 68uF 63V 20% 8 X 12mm Radial 3.5mm 405mA 3000h 105°C Automotive Bulk
