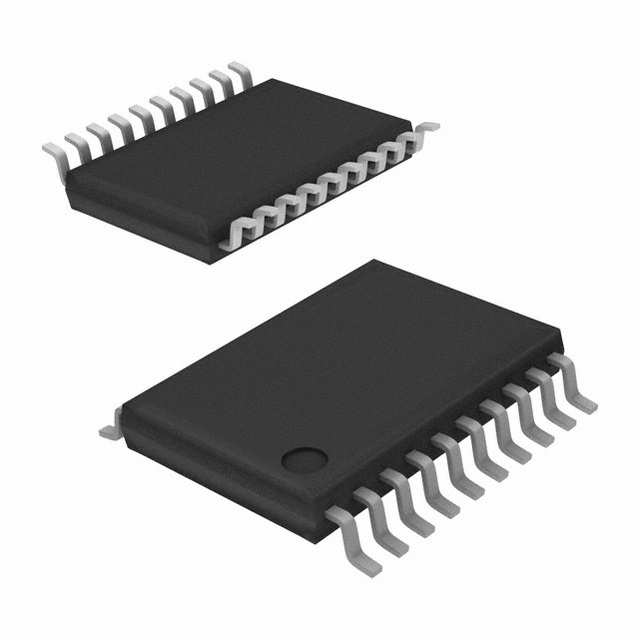

EL5227CRZ-T7

为2.5MHz 4 ， 8 ， 10及12通道上轨至轨缓冲器 2.5MHz 4, 8, 10 & 12 Channel Rail-to-Rail Buffers

The EL5127, EL5227, EL5327, and EL5427 are low power, high voltage rail-to-rail input/output buffers designed for use in reference voltage buffering applications in small LCD displays. They are available in quad EL5127, octal EL5227, 10-channel EL5327, and 12-channel EL5427 topologies. All buffers feature a -3dB bandwidth of 2.5MHz and operate from just 133µA per buffer. This family also features a continuous output drive capability of 30mA sink and source.

Features

• 2.5MHz -3dB bandwidth

• Supply voltage = 4.5V to 16.5V

• Low supply current per buffer = 133µA

• High slew rate = 2.2V/µs

• Rail-to-rail input/output swing

• Ultra-small packages

• Pb-free plus anneal available RoHS compliant

Applications

• TFT-LCD drive circuits

• Electronic games

• Touch-screen displays

• Personal communication devices

• Personal digital assistants PDAs

• Portable instrumentation
