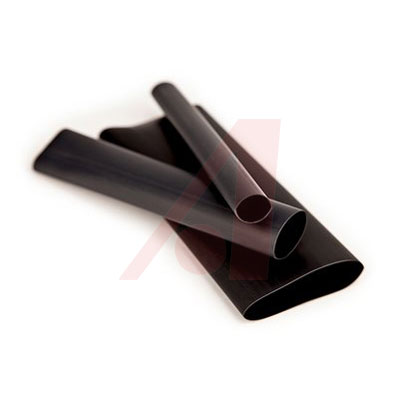

热收缩管和套管 2:1 Thin Wall+Adhsv 1, 48" Black

** EPS-200 Heat Shrink Tubing**

The EPS-200 range of heat shrink tubing offers adhesive-lined construction. The tubing is a flexible, flame-retardant polyolefin which has a thin layer of special thermoplastic adhesive. The heat-shrinkable outer wall is selectively cross-linked while still being able to maintain the high flow and excellent adhesion of the inner sealant liner. When the tubing is heated in temperatures above 121 °C the EPS-200 quickly shrinks to a skin-tight fit. Upon cooling, the adhesive solidifies forming a permanent, non-drying, flexible and water resistant barrier rated for operation from -55 to +110 °C. The tubing has a shrink ratio of 2:1.

EPS200-1-48"-BLACK中文资料参数规格
技术参数

工作温度Max 110 ℃

工作温度Min -55 ℃

外形尺寸

长度 4 ft

内径尺寸 25.4 mm

物理参数

颜色 Black

材质 Polyolefin

工作温度 -55℃ ~ 110℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买EPS200-1-48"-BLACK
型号: EPS200-1-48"-BLACK
制造商: 3M
描述:热收缩管和套管 2:1 Thin Wall+Adhsv 1, 48" Black
