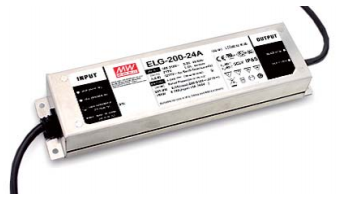

LED Driver CC, CV 200W 4.76A Linear 21-42VDC 100-305VAC PFC DALI Dimming IP67 Metal Enclosure
4.76A 42V 恒定电流，电压 LED 驱动器 AC DC 转换器 拓扑 1 输出
得捷:
O/P +42V4.76A
贸泽:
LED Power Supplies 199.9W42V 4.76A IP67 CC+CV DALI control
艾睿:
AC/DC LED Power Supply 199.9W Single 6-Pin
安富利:
LED Power Module 100Vac to 305Vac/142Vdc to 431Vdc Single Output 42V 199.9W Lead Wire
TME:
Pwr sup.unit: switched-mode; Communication: DALI; LED; 200W; 42VDC
Electro Sonic:
AC/DC LED Pwr Sply - Const Curr/Volt - 199.9W - Dim: 42 Vdc @ 4,760mA - Dim: DALI
CDI:
LED Driver CC, CV 200W 4.76A Linear 21-42Vdc 100-305Vac PFC DALI Dimming IP67 Metal Enclosure
额定功率 200 W
输出接口数 1
输出电压 42 V
输出电流 4.76 A
输出功率 199.9 W
隔离电压 3.75 kV
输入电压Max 305 VAC
输入电压Min 100 VAC
输出电流Max 4760 mA
输出功率Max 199 W
工作温度Max 90 ℃
工作温度Min -40 ℃
输入电压 100VAC ~ 305VAC, 142VDC ~ 431VDC
引脚数 6
封装 Metal Enclosure
长度 244 mm
宽度 71 mm
高度 37.5 mm
封装 Metal Enclosure
工作温度 -40℃ ~ 90℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
