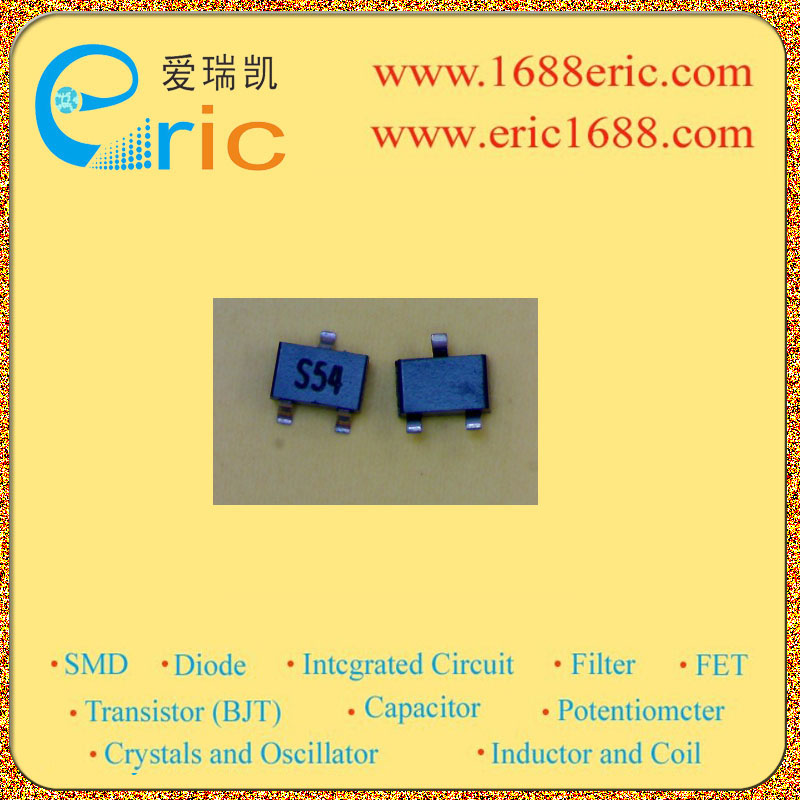

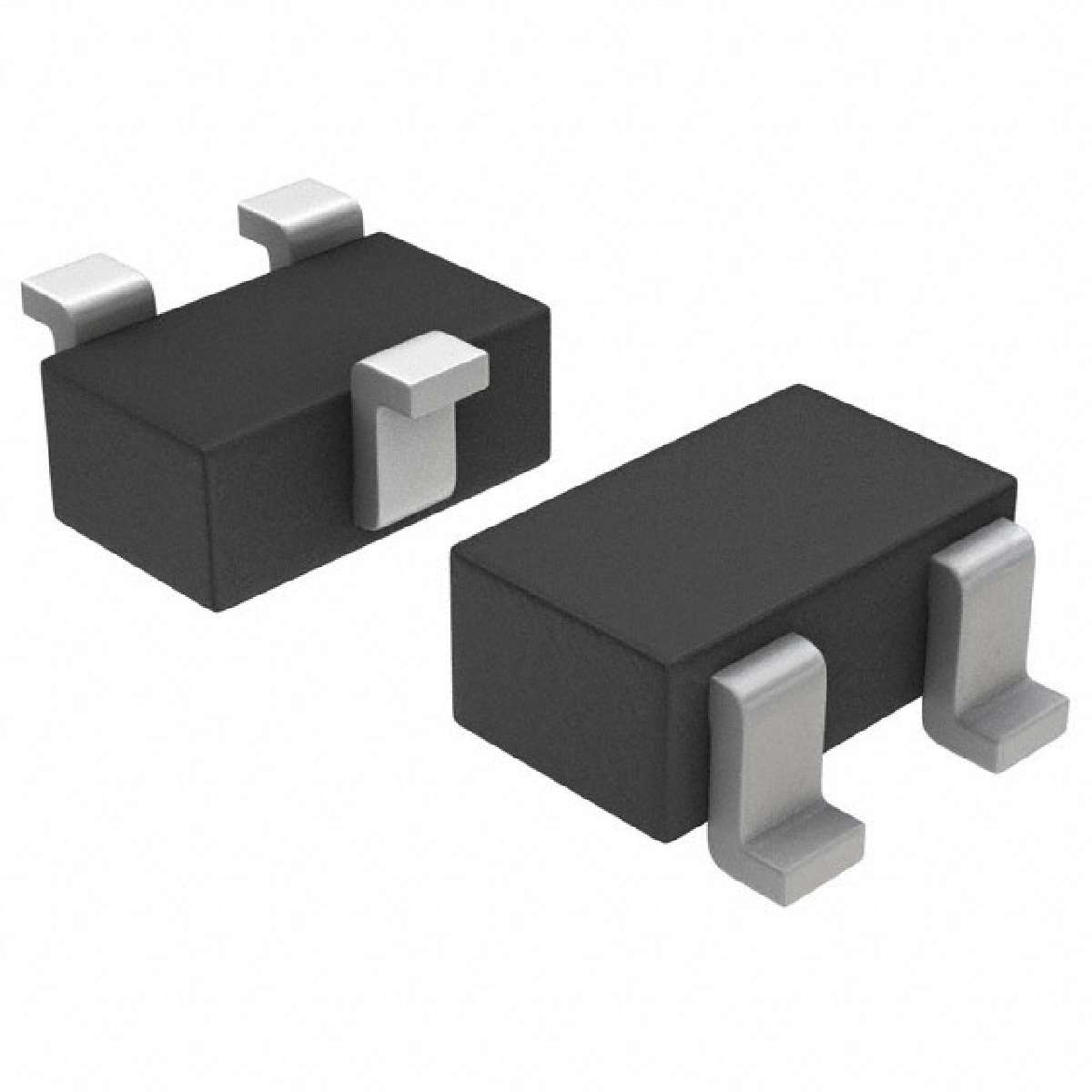

FJX4004RTF

特点•开关应用（偏置电阻内置）•开关电路，逆变器，接口电路，驱动器电路•内置偏置电阻（R1=47KΩ，R2=47KΩ）•到FJX3004R补

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| -50V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| -50V 集电极连续输出电流IC Collector CurrentIC| -100mA/-0.1A 基极输入电阻R1 Input ResistanceR1| 47KΩ/Ohm 基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 47KΩ/Ohm 电阻比R1/R2 Resistance Ratio| 1 直流电流增益hFE DC Current GainhFE| 68 截止频率fT Transtion FrequencyfT| 200MHz 耗散功率Pc Power Dissipation| 0.2W/200mW Description & Applications| Features • Switching Application Bias Resistor Built In • Switching circuit, Inverter, Interface circuit, Driver Circuit • Built in bias Resistor R1=47KΩ, R2=47KΩ • Complement to FJX3004R 描述与应用| 特点 •开关应用（偏置电阻内置） •开关电路，逆变器，接口电路，驱动器电路 •内置偏置电阻（R1=47KΩ，R2=47KΩ） •到FJX3004R补
