PWM 控制器,Fairchild Semiconductor### 离线和隔离直流-直流控制器,Fairchild Semiconductor回扫控制器、线路电平控制 LLC 控制器和初级侧调节控制器显著节能,以满足开关模式电源 SMPS 设计的需要。 所有控制器随附集成软启动和过压、开口反馈、过载、输出短路、过电流、电压中断和欠压闭锁功能。
Protect your circuit from surges with the power switch, developed by Semiconductor. This charge controller has single output. This device has a maximum power dissipation of 1500 mW. This charge controller has an input voltage of -0.3 to 10 V. It features 8.8 Ohm switch on resistance. This device has a supply current of 1.2 mA and a minimum output current of 1Max A. Its maximum power dissipation is 1500 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This charge controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
额定功率 15 W
输出接口数 1
输出电压 700 V
输出电流 1 A
击穿电压 700 V
供电电流 1.2 mA
耗散功率 1.5 W
开关频率 67 kHz
占空比 67 %
输出电流Min 0.7 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1500 mW
输入电压 13V ~ 23V

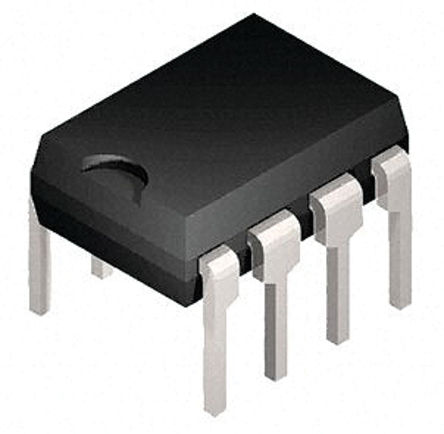

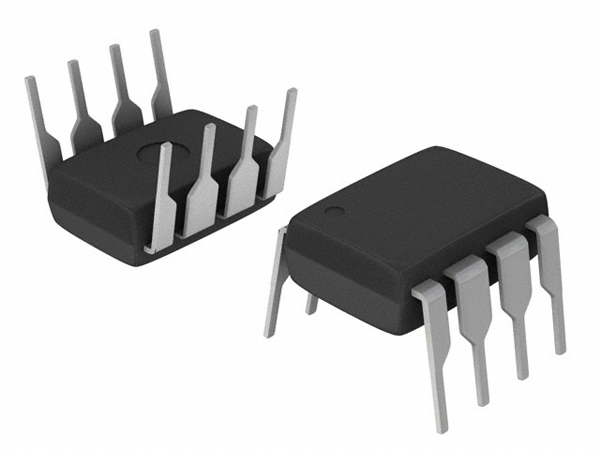

安装方式 Through Hole
引脚数 8
封装 DIP-8
长度 9.83 mm
宽度 6.67 mm
高度 3.68 mm
封装 DIP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
