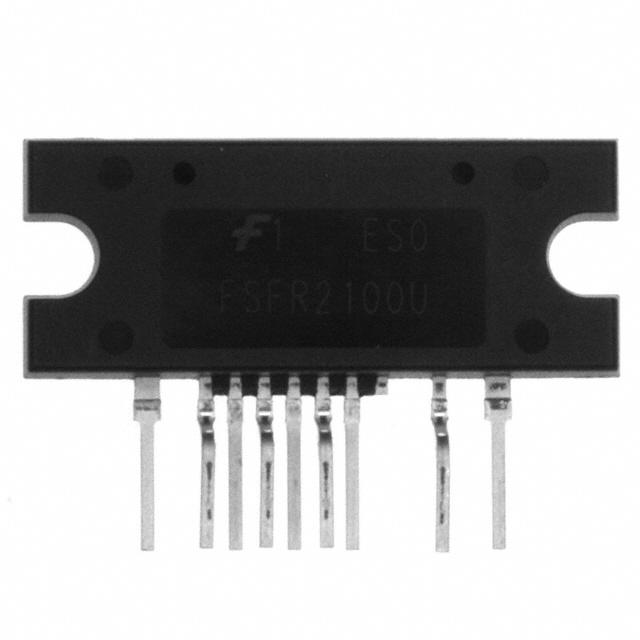

飞兆功率开关（ FPS ）的半桥谐振转换器 Fairchild Power Switch FPS for Half-Bridge Resonant Converters
Description
The FSFR-series include highly integrated power switches designed for high-efficiency half-bridge resonant converters. Offering everything necessary to build a reliable and robust resonant converter, the FSFR series simplifies designs and improves productivity, while improving performance. The FSFR-series combines power MOSFETs with fast-recovery type body diodes, a high-side gate-drive circuit, an accurate current controlled oscillator, frequency limit circuit, soft-start, and built-in protection functions.
Features
Variable Frequency Control with 50% Duty Cycle for Half-bridge Resonant Converter Topology
High Efficiency through Zero Voltage Switching ZVS
Internal UniFET™s with Fast-Recovery Type Body Diode trr<160ns.
Fixed Dead Time 350ns Optimized for MOSFETs
Up to 300kHz Operating Frequency
Pulse Skipping for Frequency Limit Programmable at Light-Load Condition
Remote On/Off Control Using Control Pin
Protection Functions: Over-Voltage Protection OVP, Over-Load Protection OLP, Over-Current Protection OCP, Abnormal Over-Current Protection AOCP, Internal Thermal Shutdown TSD
Applications
PDP and LCD TVs
Desktop PCs and Servers
Adapters
Telecom Power Supplies
Audio Power Supplies
