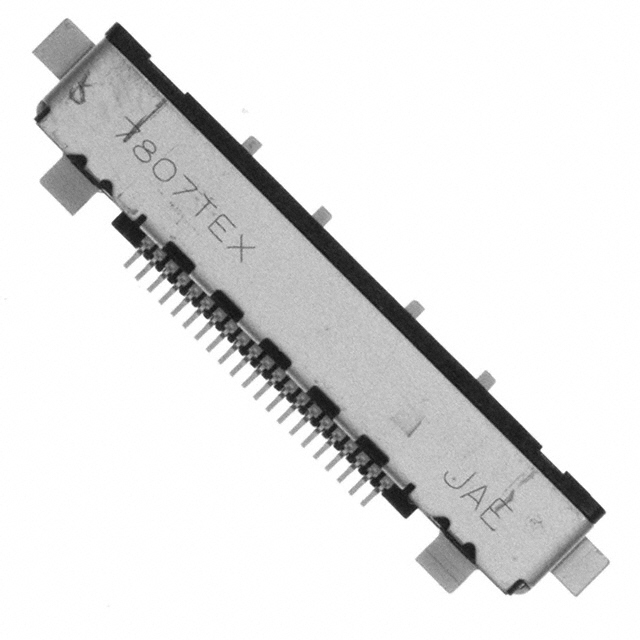

Conn High Speed Fine Pitch Connector RCP 21POS 0.5mm Solder RA SMD T/R
Connector for Internal Serial Transmission
High-speed serial transmission such as LVDS, TMDS HDMI, and PCI Express are widely used in applications in a variety ofmarkets including the personal computer, TV, consumer device,copier, and medical device markets.
In these applications connectors not only need to have the ability to transmit signals at high speed, but they also must have the durability, ease of mating, and variety of options to respond to the demands of all designs. The FI-R is the ideal connector series to meet these demands.
Features
•0.5mm terminal pitch, 3.8mm connector, compact design with 21, 31, 41, and 51 positions.
•Stable mating with large mating guides on the Plug.
•Strong PCB retention with solderhold-downs on the Receptacle.
•Impedance matching: 100 ohm. Ground reinforced by shell structure and hold-downs.
•Receptacle options include with and without shell, and right-angle and straight types, all with a common footprint.
•Mechanical lock to prevent mis-mating and accidental unmating.
•Plug options for discrete wire crimping, fine coaxial wire soldering,and FFC to suit a variety of needs.
•VESA standard connector for TV LCD interface.
