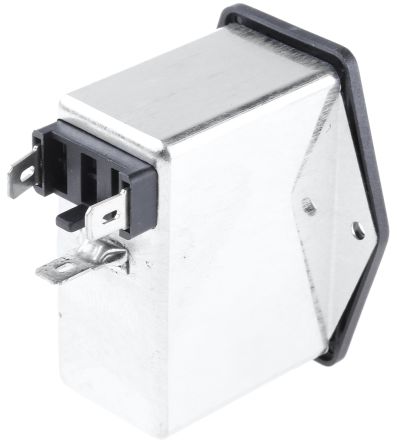

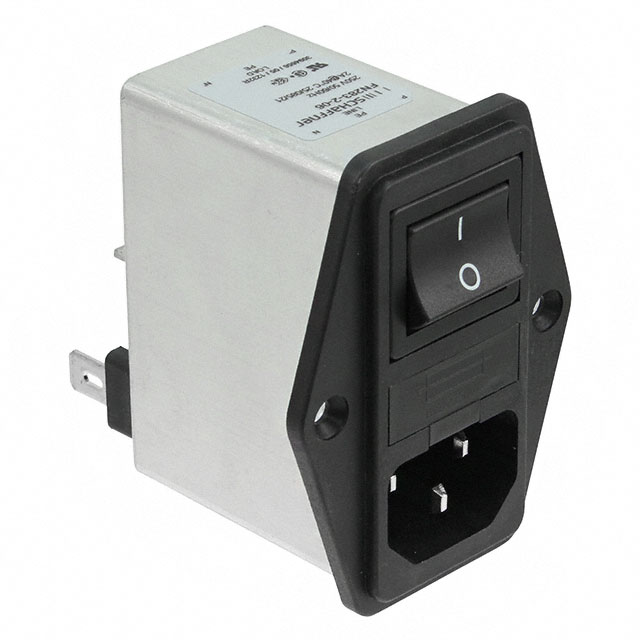

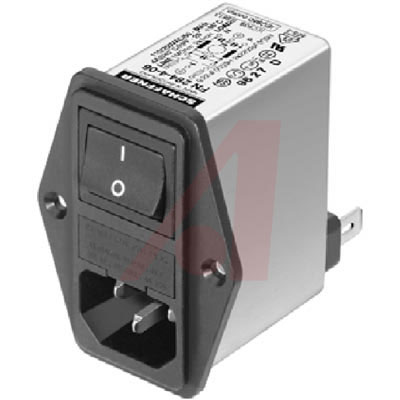

FN283-2-06

SCHAFFNER  FN283-2-06.  电源入口模块, 250V, 2A

FN280 系列

FN280 电源接入模块外形小巧，具有一个 IEC 入口、带单或双熔丝架主和一个 2 极摇臂开关。 在医疗应用的电流额定值、熔丝选项、安装可能性和滤波器上设计了非常多的选择，可为您提供所需的解决方案。

可用于多种应用，例如便携式电气和电子设备、消费品、 EDP 和办公设备、单相电源、开关模式电源、测试和测量设备和医疗设备。

符合 IEC/EN 60601-1

额定电流高达 10 A

单或双熔丝架

双极摇臂开关

可选接地线路扼流器（E 型）

可选医疗版本（B 型）

得捷:
PWR ENT MOD RCPT IEC320-C14 PNL

欧时:
IEC Inlet filter with single fuse 2A

e络盟:
电源插座, 带滤波器 2A 单保险丝 水平安装

艾睿:
Deliver power to your circuit&s;s components with this filtered FN283-2-06 plug connector from Schaffner. This M connector has 3 M contacts. It has a maximum voltage rating of 250 VAC. It has a male type gender. This connector has a single port. It has a straight body orientation. This device has a maximum current rating of 2 A. It has an operating frequency of 50 to 400 Hz. This product is 50 mm long, 65 mm tall and 64.8 mm deep. This part has an operating temperature of -25 to 85 °C. It uses the spade/solder termination method.

Allied Electronics:
Power Entry Module; Compact; 2A; Fast-on/Solder Lug Connections; FN280 Series

Chip1Stop:
Power Entry Module Filtered M 3 POS 250VAC 2A Switch/Fuse ST 1 Port

Newark:
Power Entry Connector, FN 280 Series, Plug, 250 VAC, 2 A, Panel Mount, Quick Connect

MASTER:
Power Entry Connector - FN 280 Series - Plug - 250 VAC - 2 A - Panel Mount - Quick Connect.

Electro Sonic:
Power Entry Connector - FN 280 Series - Plug - 250 VAC - 2 A - Panel Mount - Quick ...
