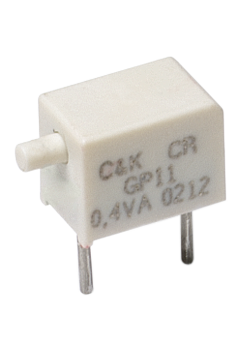

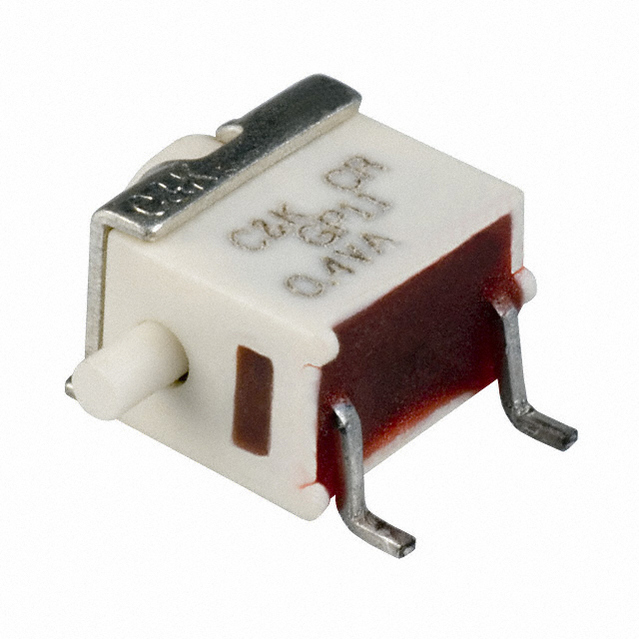

C & K COMPONENTS GP11MSABE 按钮开关, SPST, 关-开, 20 V, 20 V, SMD
The GP series sealed ultra miniature Pushbutton Switch with gold over nickel plated copper alloy contacts. It is made of flame-retardant heat stabilized glass filled nylon 4/6 housing and base.
- .
- Design saves space
- .
- Process compatible, withstands most soldering and washing processes
- .
- Through-hole or surface mount
- .
- Sealed construction internal O-ring and epoxy base
额定电压DC 20 V
额定电压AC 20 V
触点类型 SPST
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <50 mΩ
安装方式 Surface Mount
封装 SMD
高度 5.46 mm
封装 SMD
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 传感与仪器, 计算机和计算机周边, 通信与网络, 医用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
GP11MSABE C&K Components | 当前型号 | 当前型号 |
GP11MSA1BE C&K Components | 完全替代 | GP11MSABE和GP11MSA1BE的区别 |
GP11MSAKE C&K Components | 完全替代 | GP11MSABE和GP11MSAKE的区别 |
EP11SD1SAPE C&K Components | 类似代替 | GP11MSABE和EP11SD1SAPE的区别 |
