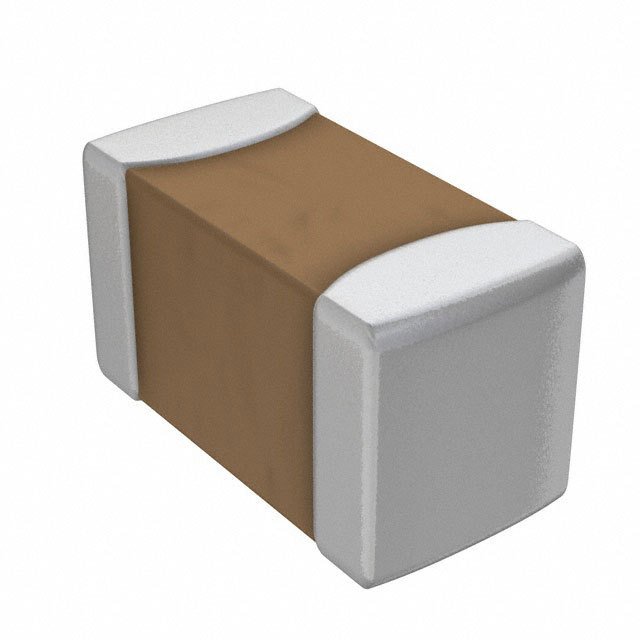

0201 3.9 pF 25 V C0G 0.25 pF 容差 多层陶瓷电容
MLCC-多层陶瓷器
立创商城:
3.9pF ±0.25pF 25V
得捷:
CAP CER 3.9PF 25V C0G/NP0 0201
艾睿:
Available with a variety of capacitance values, voltage ratings, package sizes, and other parameters, this GJM0335C1E3R9CB01D multilayer ceramic capacitor from Murata can be used in multiple applications and for various purposes. It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 0.6 mm long, 0.3 mm tall and 0.3 mm deep. Its capacitance value is 3.9pF.
安富利:
Cap Ceramic 3.9pF 25V C0G 0.25pF SMD 0201 125°C Paper T/R
Verical:
Cap Ceramic 3.9pF 25V C0G 0.25pF Pad SMD 0201 125C T/R
额定电压DC 25.0 V
绝缘电阻 10 GΩ
电容 3.9 pF
容差 ±0.25 pF
电介质特性 C0G/NP0
产品系列 GJM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
封装 0201
长度 0.6 mm
宽度 0.3 mm
高度 0.3 mm
封装 0201
厚度 0.3 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 15000
制造应用 RF,微波,高频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GJM0335C1E3R9CB01D muRata 村田 | 当前型号 | 当前型号 |
ECD-GZE3R9C 松下 | 类似代替 | GJM0335C1E3R9CB01D和ECD-GZE3R9C的区别 |
