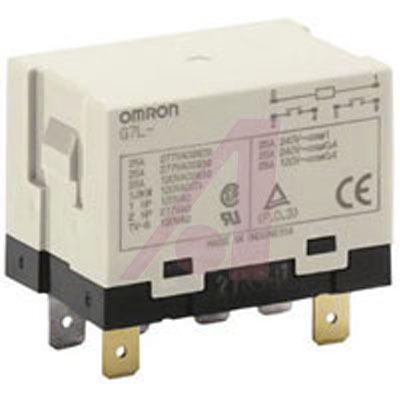

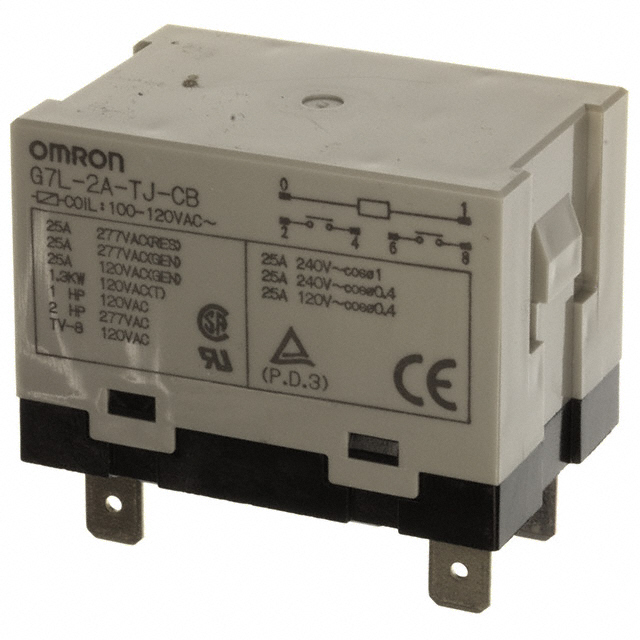

G7L-2A-T-J-CB-AC100/120

Electromechanical Relay 100/120VAC 5.26KΩ 25A DPST-NO 52.5mm 33.5mm 53mm Bracket General Purpose Relay

Panel Mount type switches 30A 1FormA and 25A 2FormA Resistive at 220VAC while PCB type switches 20A 1FormA and 2FormA Resistive at 220VAC

100/120VAC Coil activates between 100 to 120 VAC at either 50 or 60 Hz

No contact chattering for mometary voltage drops up to 50 percent of rated voltage

UL rated 3HP 240/277 VAC 100K cycles and Ballast rating of 20A 277VAC 10K cycles

Flame-resistant materials UL94V-0 used for all insulation

Standard models are UL, CSA, and TUV approved VDE versions available

Available in Screw, Quick Connect, and PCB Terminals

Conforms to IEC 950

Track Mounting Adapter available for G7L-12-A-BTJ-CB Models
