GC160A24-R7B

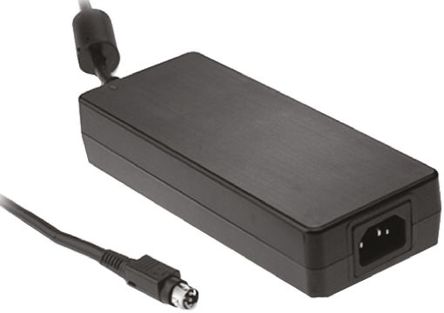

GC160A24-R7B图片1

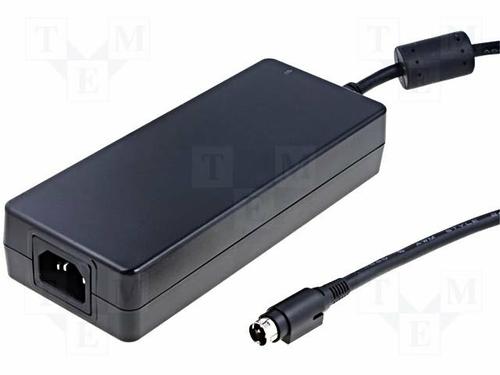

GC160A24-R7B图片2

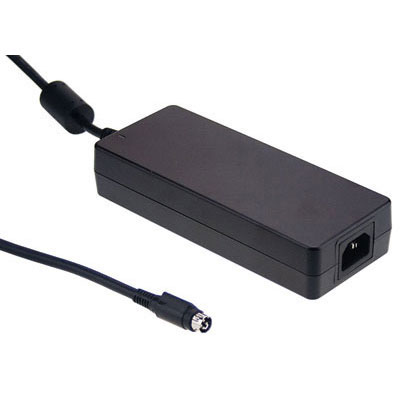

GC160A24-R7B图片3

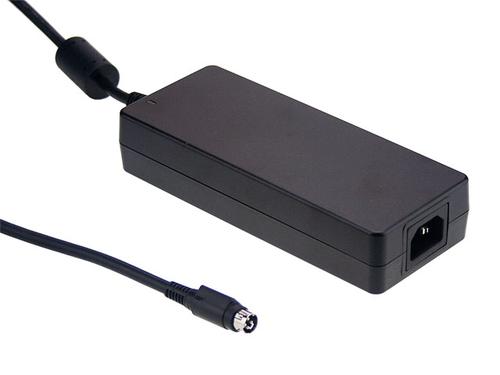

GC160A24-R7B图片4

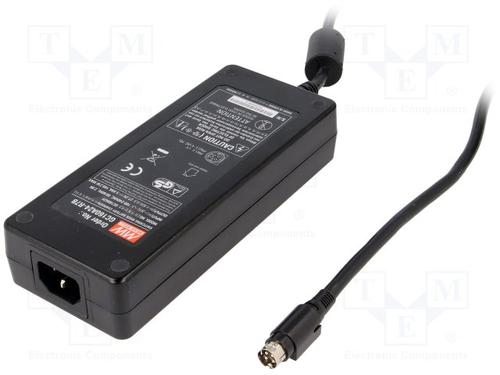

GC160A24-R7B图片5

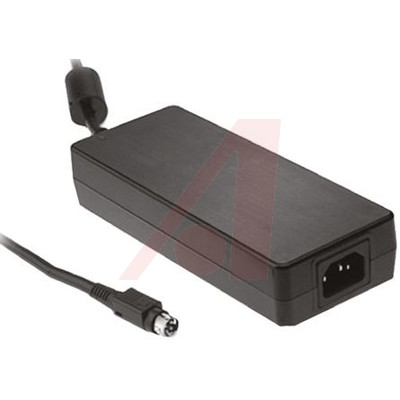

GC160A24-R7B图片6

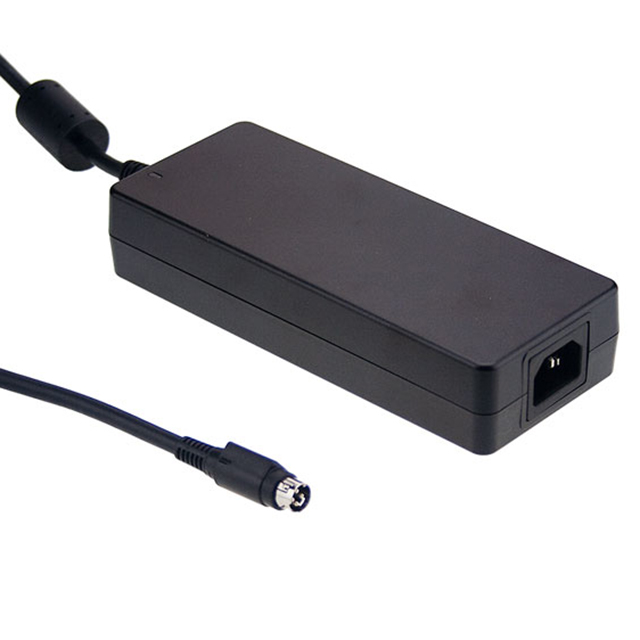

GC160A24-R7B图片7
GC160A24-R7B图片8
GC160A24-R7B图片9
GC160A24-R7B图片10
GC160A24-R7B图片11
GC160A24-R7B图片12
GC160A24-R7B图片13
GC160A24-R7B图片14
GC160A24-R7B概述

160W Single Output Battery Charger2 stage charging characteristic Universal AC input / Full range No load power consumptionBuilt-in active PFC function, PF>0.95 Meet EISA 2007Energy Independence and Security Act 3 pole AC inlet IEC320-C14 Class I power with earth pin Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection Fully enclosed plastic case 2 color LED indicator for charging status Approvals: TUV / UL / CB / FCC / CE 2 years warranty ### 铅酸

160W Single Output Battery Charger

2 stage charging characteristic

Universal AC input / Full range

No load power consumption<1W

Built-in active PFC function, PF>0.95

Meet EISA 2007Energy Independence and Security Act

3 pole AC inlet IEC320-C14

Class I power with earth pin

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Fully enclosed plastic case

2 color LED indicator for charging status

Approvals: TUV / UL / CB / FCC / CE

2 years warranty

GC160A24-R7B中文资料参数规格
技术参数

输出接口数 1

输出电压 27.2 V

输出电流 5.89 A

输出功率 160.2 W

额定电流Max 1.85 A

输出功率Max 160.2 W

额定功率Max 160.2 W

工作温度Max 70 ℃

工作温度Min -30 ℃

输入电压 85VAC ~ 264VAC

封装参数

安装方式 Plug In

外形尺寸

长度 6.89 mm

宽度 2.83 mm

高度 35 mm

物理参数

重量 700 g

工作温度 -30℃ ~ 70℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买GC160A24-R7B
型号: GC160A24-R7B
制造商: Mean Well 台湾明纬
描述:160W Single Output Battery Charger 2 stage charging characteristic Universal AC input / Full range No load power consumptionBuilt-in active PFC function, PF>0.95 Meet EISA 2007Energy Independence and Security Act 3 pole AC inlet IEC320-C14 Class I power with earth pin Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection Fully enclosed plastic case 2 color LED indicator for charging status Approvals: TUV / UL / CB / FCC / CE 2 years warranty ### 铅酸
