交流/直流电源, 医用, 1输出, 22 W, 12 V, 2.08 A

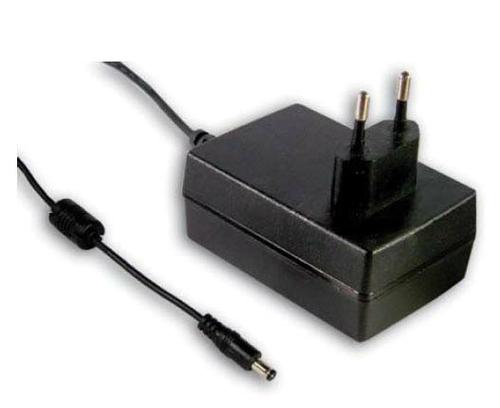

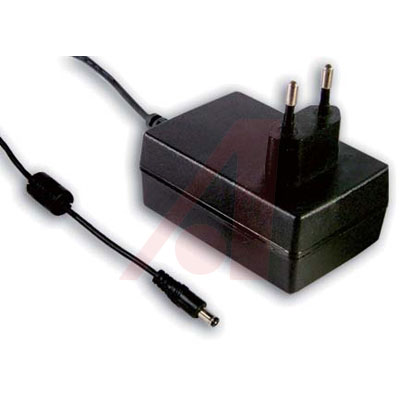

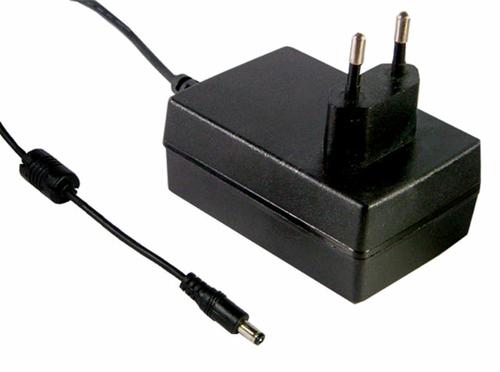

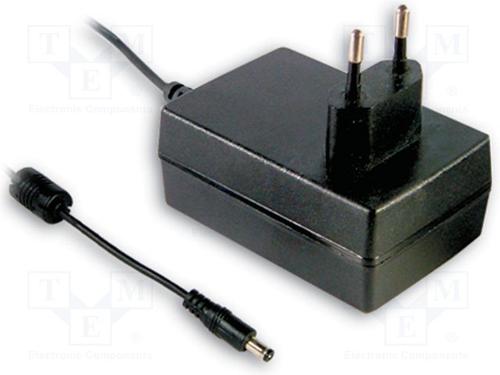

GSM25E is a highly reliable, 25W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin no FG standard IEC320-C8 power plug, adopting the input range from 80 VAC to 264 VAC. The entire series supplies different output voltages between 5 VDC and 48 VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards 2 × MOPP, having an ultra low leakage current less than 50 uA, fitting the medical devices in direct electrical contact with the patients.
With the efficiency up to 88 percent and the extreme low no-load power consumption below 0.1 W, the design of GSM25E is compliant with EU ErP and meet Code of Conduct CoC Version 5; the supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM25E is approved with the international medical safety certificates.
Universal AC input / Full range
2 pole EURO plug
Medical safety approved 2 × MOPP between primary to secondary
Suitable for BF application with appropriate system consideration
Low leakage current less than 50 uA
No load power consumption less than 0.1 W
Energy efficiency Level VI except 5~9V for Level V
Comply with EU ErP and meet CoC Version 5
High efficiency up to 88 percent
High operating temperature up to 60 degree C
Class II power without earth pin
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
LED indicator for power on
Optional lock type DC plug
100 percent full load burn-in test
3 years warranty
