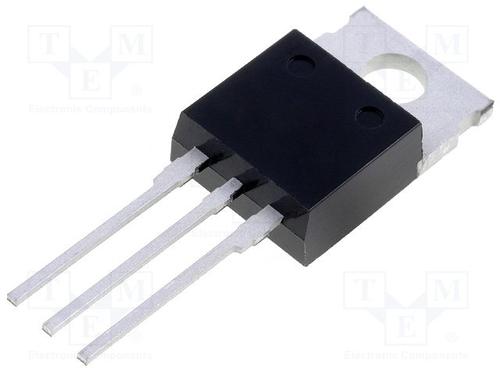

Trans MOSFET N-CH 150V 83A 3Pin3+Tab TO-220AB Tube
PDP SWITCH
Features
Advanced Process Technology
Key Parameters Optimized for PDP Sustain, Energy Recovery and Pass Switch Applications
Low EPULSERating to Reduce Power Dissipation in PDP Sustain, Energy Recovery and Pass Switch Applications
Low QGfor Fast Response
High Repetitive Peak Current Capability for Reliable Operation
Short Fall & Rise Times for Fast Switching
175°C Operating Junction Temperature for Improved Ruggedness
Repetitive Avalanche Capability for Robustness and Reliability
额定电压DC -150 V
额定电流 -83.0 A
漏源极电阻 15 mΩ
极性 N-Channel
耗散功率 330 W
产品系列 IRFB4228PBF
阈值电压 5 V
输入电容 4.53 nF
栅电荷 110 nC
漏源极电压Vds 150 V
连续漏极电流Ids 83.0 A
输入电容Ciss 4530pF @25VVds
额定功率Max 330 W
工作温度Max 175 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 3
封装 TO-220-3
封装 TO-220-3
工作温度 -40℃ ~ 175℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
