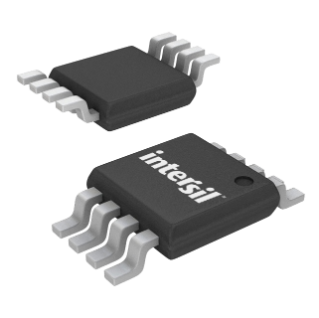

ISL28218FBZ

40V精密单电源轨至轨输出，低功耗运算放大器 40V Precision Single Supply Rail-to-Rail Output Low Power Operational Amplifiers

The is a low-power precision dual Operational Amplifier with rail-to-rail output. This device feature a common-mode input voltage range extending to 0.5V below the V- rail, a rail-to-rail differential input voltage range for use as a comparator and rail-to-rail output voltage swing, which makes them ideal for single-supply applications where input operation at ground is important. This op amps feature low power, low offset voltage and low temperature drift, making them the ideal choice for applications requiring both high DC accuracy and AC performance. The combination of precision and small footprint provides the user with outstanding value and flexibility relative to similar competitive parts.

.

850µA Low current consumption

.

5.6nV/√Hz Low noise voltage

.

355fA/√Hz Low noise current

.

230µV Maximum low input offset voltage

.

1.4µV/°C Maximum superb offset voltage temperature drift
