ISL28117FUZ

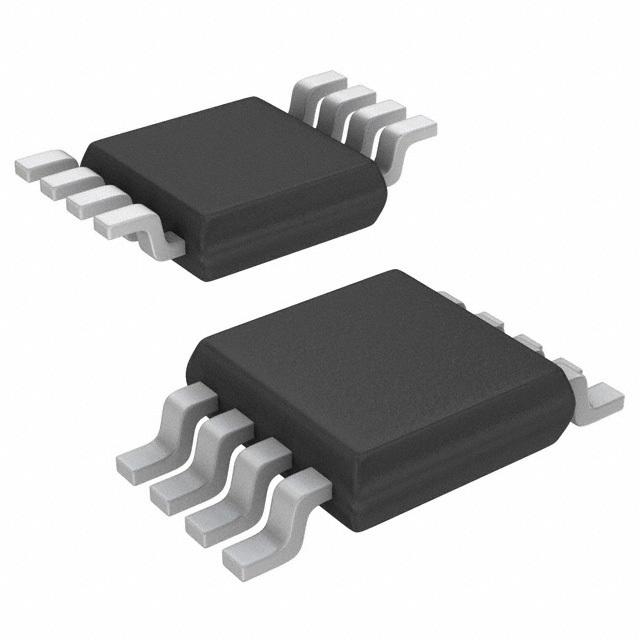

ISL28117FUZ图片1
ISL28117FUZ图片2
ISL28117FUZ图片3
ISL28117FUZ图片4
ISL28117FUZ概述

40V,低功耗精密运算放大器

The ISL28117 and ISL28217 are a family of very high precision amplifiers featuring low noise vs power consumption, low offset voltage, low IBIAS current and low temperature drift making them the ideal choice for applications requiring both high DC accuracy and AC performance. The combination of precision, low noise, and small footprint provides the user with outstanding value and flexibility relative to similar competitive parts. Applications for these amplifiers include precision active filters, medical and analytical instrumentation, precision power supply controls, and industrial controls. The ISL28117 single and ISL28217 dual are offered in an 8 Ld SOIC package. Both devices are offered in standard pin configurations and operate over the extended temperature range to -40°C to +125°C.

**Features**

• Low Input Offset . . . . . . . . . . . . . . ±50µV, Max.

• Superb Offset TC . . . . . . . . . . . . 0.6µV/°C, Max.

• Input Bias Current . . . . . . . . . . . . . . ±1nA, Max.

• Input Bias Current TC . . . . . . . . . .±5pA/°C, Max.

• Low Current Consumption . . . . . . . . . . . . .440µA

• Voltage Noise. . . . . . . . . . . . . . . . . . . . . 8nV/Hz

• Wide Supply Range. . . . . . . . . . . . . . 4.5V to 40V

• Operating Temperature Range . . -40°C to +125°C

• Small Package Offerings in Single and Dual

• Pb-Free RoHS Compliant

**Applications**

• Precision Instruments

• Medical Instrumentation

• Spectral Analysis Equipment

• Active Filter Blocks

• Thermocouples and RTD Reference Buffers

• Data Acquisition

• Power Supply Control

ISL28117FUZ中文资料参数规格
技术参数

供电电流 440 µA

电路数 1

增益频宽积 1.5 MHz

过温保护 No

输入补偿电压 4 µV

输入偏置电流 80 pA

增益带宽 1.5 MHz

共模抑制比Min 120 dB

封装参数

安装方式 Surface Mount

封装 MSOP-8

外形尺寸

封装 MSOP-8

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

ISL28117FUZ引脚图与封装图

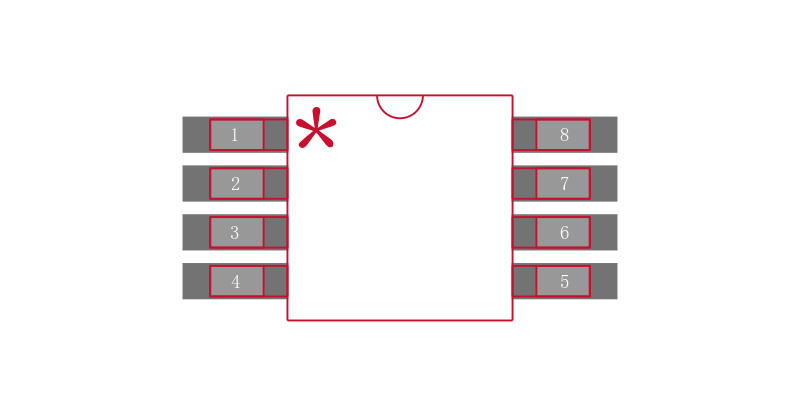

ISL28117FUZ引脚图
ISL28117FUZ封装图
ISL28117FUZ封装焊盘图
在线购买ISL28117FUZ
型号: ISL28117FUZ
制造商: Intersil 英特矽尔
描述:40V,低功耗精密运算放大器
替代型号ISL28117FUZ
型号/品牌 代替类型 替代型号对比

ISL28117FUZ

Intersil 英特矽尔

当前型号

当前型号

ISL28117FUZ-T7A

英特矽尔

完全替代

ISL28117FUZ和ISL28117FUZ-T7A的区别

ISL28117FUZ-T13

瑞萨电子

类似代替

ISL28117FUZ和ISL28117FUZ-T13的区别
