INA111AUE4

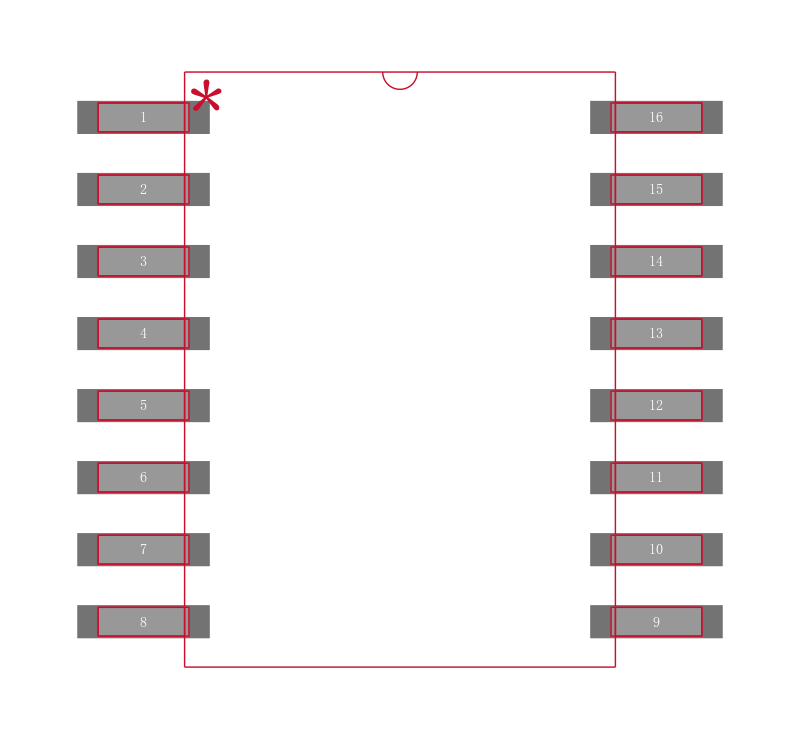

TEXAS INSTRUMENTS  INA111AUE4  仪器放大器, 1个放大器, 1 mV, 17 V/µs, 2 MHz, ± 6V 至 ± 18V, SOIC

The is a high speed FET-input Instrumentation Amplifier uses a current-feedback topology providing extended bandwidth 2MHz at G=10 and fast settling time 4us to 0.01% at G=100. A single external resistor sets any gain from 1 to over 1000. Offset voltage and drift are laser trimmed for excellent DC accuracy. The amplifier"s FET inputs reduce input bias current to under 20pA, simplifying input filtering and limiting circuitry.

.

20pA Maximum FET input

.

5µV/°C Maximum low offset voltage drift

.

Green product and no Sb/Br

ESD sensitive device, take proper precaution while handling the device.
