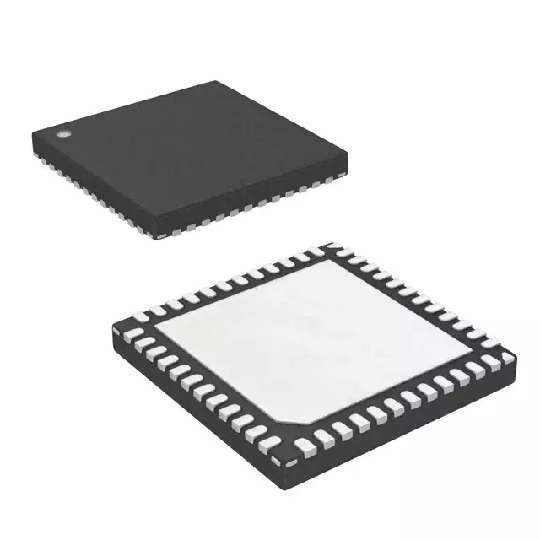

ISL6328IRZ

双PWM控制器用于驱动AMD SVI分割平面处理器 Dual PWM Controller For Powering AMD SVI Split-Plane Processors

Dual PWM Controller For Powering AMD SVI Split-Plane Processors

The ISL6328 dual PWM controller delivers high efficiency and tight regulation from two synchronous buck DC/DC converters. The ISL6328 supports power control of AMD processors, which operate from a serial VID interface SVI. The dual output ISL6328 features a multi-phase controller to support the Core voltage VDD and a single phase controller to power the Northbridge VDDNB.

Features

• Processor Core Voltage Via Integrated Multi-Phase Power Conversion

• Configuration Flexibility

\- 1 or 2-Phase Operation with Internal Drivers

\- 3 or 4-Phase Operation with External PWM Drivers

• PSI_L Support

\- Phase Shedding for Improved Efficiency at Light Load

\- Diode Emulation in PSI mode

\- Gate Voltage Optimization

• Precision Core Voltage Regulation

\- Differential Remote Voltage Sensing

\- ±0.6% System Accuracy Over-Temperature

• Optimal Processor Core Voltage Transient Response

\- Adaptive Phase Alignment APA

\- Active Pulse Positioning Modulation

• Fully Differential, Continuous DCR Current Sensing

\- Accurate Load Line Programming

\- Precision Channel Current Balancing

\- Temperature Compensated

• Serial VID interface Handles up to 3.4MHz Clock Rates

• Two Level Overcurrent Protection Allows for High Current Throttling IDD_SPIKE

• Multi-tiered Overvoltage Protection

• Selectable Switching Frequency up to 1MHz

• Simultaneous Digital Soft-Start of Both Outputs
