IPT1-115-01-L-D-RA

板至板连接, 2.54 mm, 30 触点, 针座, IPT1 Series, 通孔安装, 2 排

Connector Header Through Hole, Right Angle 30 position 0.100" 2.54mm

得捷:
CONN HEADER R/A 30POS 2.54MM

e络盟:
板至板连接, 2.54 mm, 30 触点, 针座, IPT1 Series, 通孔安装, 2 排

艾睿:

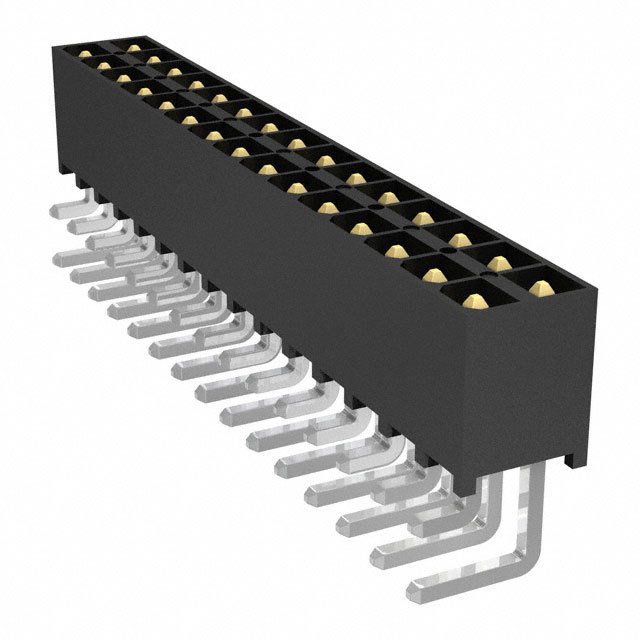

This isolated power terminal strip IPT1-115-01-L-D-RA power connector from Samtec is ideal for powering up your circuit. This HDR connector&s;s 30 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 1095 VDC|775VAC. It has a right angle body orientation. Its pitch is 2.54 mm. This connector has a single port. This device has a maximum current rating of 5.9 A/contact. IPT1-115-01-L-D-RA is housed in liquid crystal polymer. This product is 38.61 mm long, 5.08 mm tall and 10.39 mm deep. This power connector has an operating temperature range of -55 °C to 125 °C. Its 30 terminals use the solder termination method.

安富利:
Conn Isolated Power Terminal Strip HDR 30 POS 2.54mm Solder RA Thru-Hole 30 Terminal 1 Port

Newark:
# SAMTEC  IPT1-115-01-L-D-RA  Board-To-Board Connector, 2.54 mm, 30 Contacts, Header, IPT1 Series, Through Hole, 2 Rows
