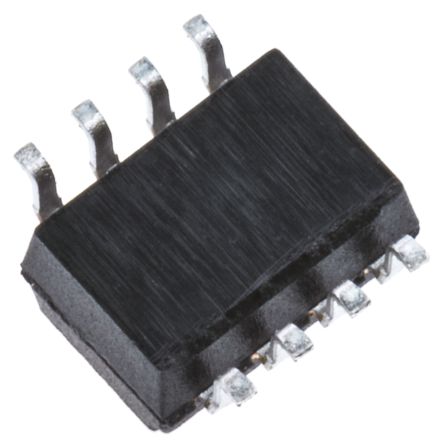

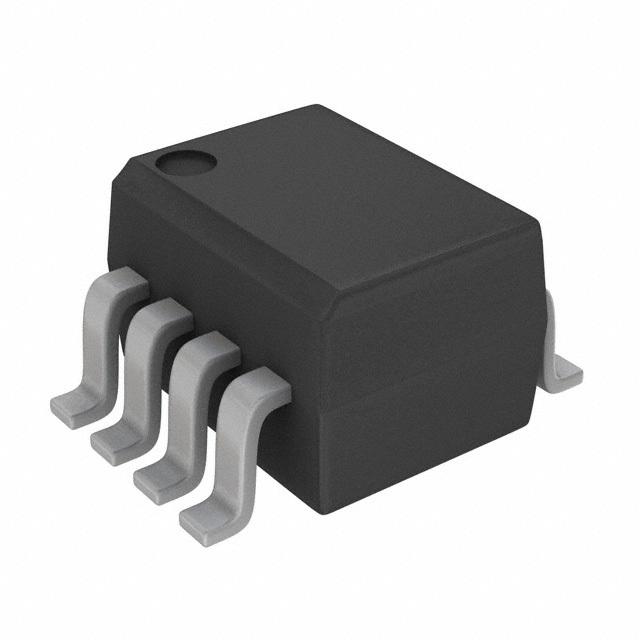

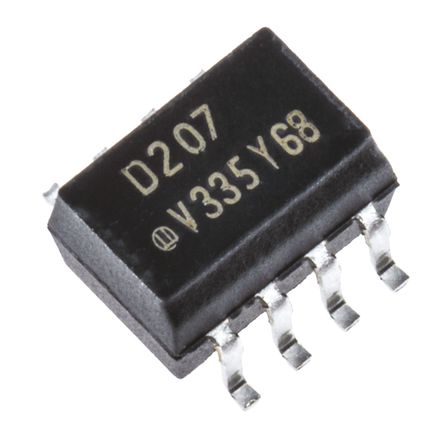

VISHAY ILD207T 光电耦合器, 晶体管输出, 2通道, SOIC, 8 引脚, 30 mA, 4 kV, 100 %
The is a Phototransistor Output Optocoupler with a Gallium Arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. It come in a standard SOIC-8A small outline package for surface mounting which makes it ideally suited for high density applications with limited space. In addition to eliminating through-holes requirements, this package conforms to standards for surface mounted devices.
- .
- Two channel coupler
- .
- Compatible with dual wave, vapour phase and IR reflow soldering
额定电压DC 1.20 V
上升/下降时间 3µs, 4.7µs
输出电压 70.0 V
通道数 2
针脚数 8
正向电压 1.2 V
输入电流 10.0 mA
耗散功率 300 mW
上升时间 0.005 ms
隔离电压 4000 Vrms
击穿电压集电极-发射极 70 V
正向电流 30 mA
输出电压Max 70 V
输入电流Min 30 mA
正向电压Max 1.55 V
正向电流Max 30 mA
下降时间 0.004 ms
工作温度Max 100 ℃
工作温度Min -55 ℃
耗散功率Max 300 mW
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5.84 mm
宽度 3.91 mm
高度 3.38 mm
封装 SOIC-8
工作温度 -55℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Communications & Networking, 通信与网络, LED Lighting, 发光二极管照明
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ILD207T VISHAY 威世 | 当前型号 | 当前型号 |
MOCD207M 飞兆/仙童 | 功能相似 | ILD207T和MOCD207M的区别 |
