JC6A25-24S

型号： JC6A25-24S

制造商： ITT Corporation ITT电子

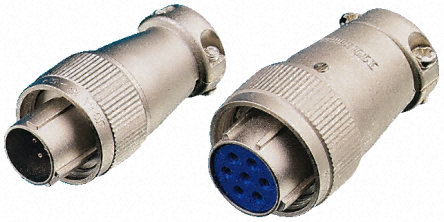

描述：JC6A 电缆安装插头 JC 系列圆形插头连接器坚固、轻型，设计用于各种工业应用。 这些圆形插头连接器小型、紧凑型，带铝合金外壳，受灰色镍表面保护，提供各种外壳尺寸和触点排列 铝合金外壳，用于保护连接 平稳配接和稳定功能使用闭口插座隔离器，用于将引脚触点导向到插座触点 插座触点位于隔离器深部，确保手指测试的安全性 金属外壳上有 5 个钥匙和钥匙凹槽，确保极化和触点校正配接 尺寸 --- **外壳尺寸** | **A** | **B** | **C** | **D** 13 | M18x1 | 21.2 | 8 | 46 16 | M22x1 | 25.5 | 12 | 49 21 | M26x1 | 29.7 | 14 | 53 25 | M30x1 | 33.8 | 18 | 56 ### ITT JC Range Metal ### ITT JC Range - Metal Designed in accordance with Japanese Industry Standard JIS-C-5432, the JC connector is rugged, lightweight and suitable for general purpose applications such as: Broadcast equipment Test and measurement equipment Medical equipment General industrial machinery Vending machines Available in 2 shell sizes and 4 contact arrangements All have thread coupling and key way polarisation to prevent misalignment when mating Operating Voltage | 250Vac ---|--- Contact Resistance | Insulation Resistance | >1000M Ω at 500Vdc Test Proof Voltage | 1000 V rms 1-min Shell Material | Nickel plated aluminium alloy Insu
