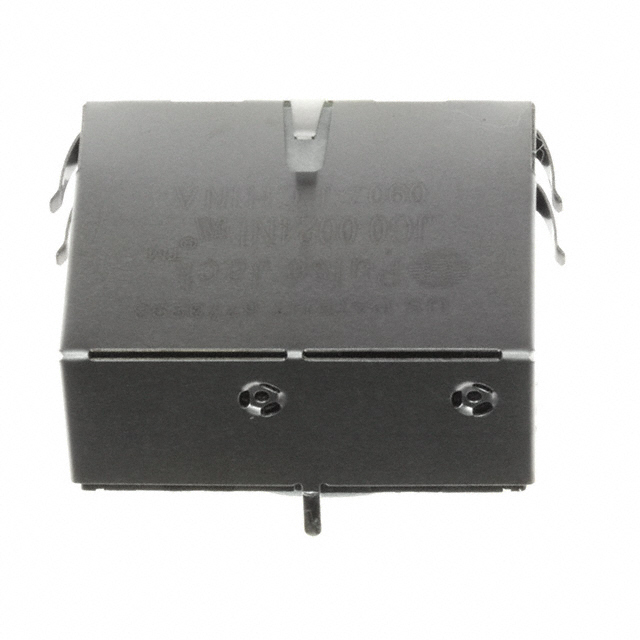

JG0-0024NL

Conn RJ-45F 20POS 2.54mm Solder RA Thru-Hole 28 Terminal 2Port Cat 5/Cat 6

2 端口 RJ45通孔 10/100/1000 Base-T，AutoMDIX

得捷:
CONN JACK 2PORT 1000 BASE-T PCB

贸泽:
Modular Connectors / Ethernet Connectors 1X2 TAB UP 8-CORE W/

艾睿:
This rj-45 JG0-0024NL telephone and telecom connector manufactured from Pulse is important for any telecom and telephone needs. This F connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. Its pitch is 2.54 mm. It has a female type gender. This connector has 2 ports. JG0-0024NL is housed in thermoplastic. This product is 31.19 mm long, 13.84 mm tall and 25.4 mm deep. This part has an operating temperature of 0 to 70 °C. It uses the solder termination method.

安富利:
Conn RJ-45 F 20 POS 2.54mm Solder RA Thru-Hole 28 Terminal 2 Port Cat 5/Cat 6

Chip1Stop:
Conn RJ-45 F 20 POS 2.54mm Solder RA Thru-Hole 28 Terminal 2 Port Cat 5/Cat 6

Verical:
Conn RJ-45 F 20 POS 2.54mm Solder RA Thru-Hole 28 Terminal 2 Port Cat 5/Cat 6

CDI:
THROUGH HOLE 1x2 TAB UP 8-CORE W/ LEDS 1000TX

Win Source:
2 Port RJ45 Magjack Connector Through Hole 10/100/1000 Base-T, AutoMDIX
