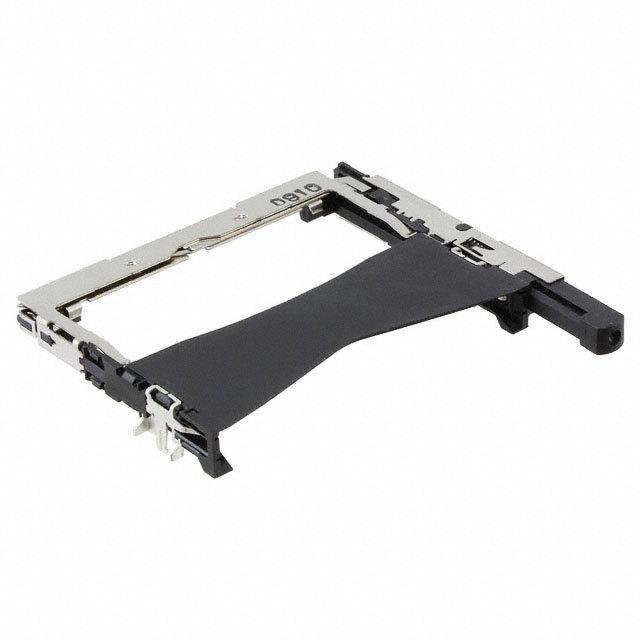

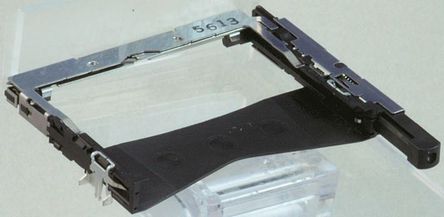

JAE JC26C2 Series CompactFlash Memory Card ConnectorsJC26C2 series SMT memory card connectors for use with CompactFlash TYPE-I/II memory cards. These memory card connectors have a low profile design with an above the board height of just 5.8 mm. Connectors with part numbers ending in 16E feature 1.6 mm board stand offs which allow components to be mounted underneath. These connectors have an above the board height of 7.4 mm. The frame structure of these JC26C2 memory card connectors incorporates card guides designed to prevent card misinsertion. A spring loaded card retention mechanism ensures the card is firmly secured within the connector. These JC26C2 CompactFlash memory card connectors are available as standard or reverse mounting. A range of eject button styles are also available; fixed, foldable and double push all with left or right hand positioning options.### Features and BenefitsLow profile design with 5.8 mm above board height Card guides to prevent card misinsertion Card retention mechanism Standard or reverse mounting Range of eject button styles Versions with board stand offs available ### ApplicationsThese JC26C series SMT memory card connectors are for use with CompactFlash TYPE-I/II memory cards and can be used in a range of applications. Applications include digital still cameras, hand held PCs and other portable devices ### JAE 存储卡连接器
\- 针位卡 CompactFlash® - I 型，II 型 卡入式 -
得捷:
CONN COMPACT FLASH CARD SNAP-IN
欧时:
JAE CF 卡 存储卡连接器 JC26C2-DRL16E
Allied Electronics:
JC26C/JC26C2 series, system side pin conn, Frame, reverse mount, left push-push, hook
Chip1Stop:
Connector Accessories Frame Left Push-Push Button Polybutylene Terephthalate
