JC6A 电缆安装插头JC 系列圆形插头连接器坚固、轻型，设计用于各种工业应用。 这些圆形插头连接器小型、紧凑型，带铝合金外壳，受灰色镍表面保护，提供各种外壳尺寸和触点排列铝合金外壳，用于保护连接 平稳配接和稳定功能使用闭口插座隔离器，用于将引脚触点导向到插座触点 插座触点位于隔离器深部，确保手指测试的安全性 金属外壳上有 5 个钥匙和钥匙凹槽，确保极化和触点校正配接 尺寸 --- **外壳尺寸** | **A** | **B** | **C** | **D** 13 | M18x1 | 21.2 | 8 | 46 16 | M22x1 | 25.5 | 12 | 49 21 | M26x1 | 29.7 | 14 | 53 25 | M30x1 | 33.8 | 18 | 56 ### ITT JC Range Metal### ITT JC Range - MetalDesigned in accordance with Japanese Industry Standard JIS-C-5432, the JC connector is rugged, lightweight and suitable for general purpose applications such as:Broadcast equipment Test and measurement equipment Medical equipment General industrial machinery Vending machines Available in 2 shell sizes and 4 contact arrangements All have thread coupling and key way polarisation to prevent misalignment when mating Operating Voltage | 250Vac ---|--- Contact Resistance | Insulation Resistance | >1000M Ω at 500Vdc Test Proof Voltage | 1000 V rms 1-min Shell Material | Nickel plated aluminium alloy Insulator Material | Blue thermosetting resin UL94V-0 Contact Material | Silver plated copper alloy Contact Termination | Solder Cable Conductor Diameter | Size 20 contact JC*A13-5, 16-10,21-16,25-24 - 0.5mm2 or smaller | Size 16 contacts JC*A13-3, 16-7,21-10,25-16 - 1.25mm2 or smaller
JC6A 电缆安装插头

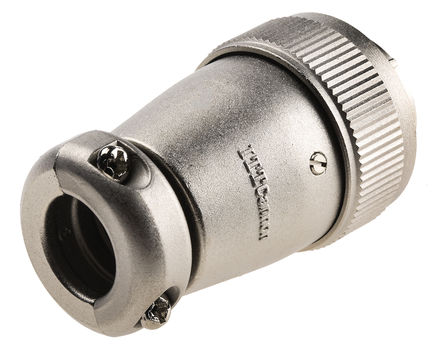

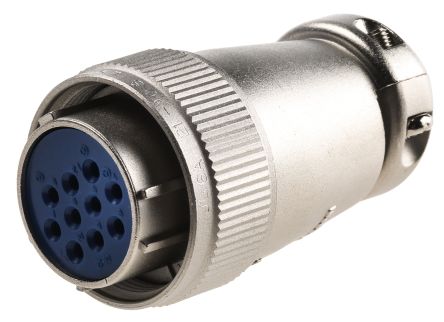

JC 系列圆形插头坚固、轻型，设计用于各种工业应用。 这些圆形插头连接器小型、紧凑型，带铝合金外壳，受灰色镍表面保护，提供各种外壳尺寸和触点排列
铝合金外壳，用于保护连接
平稳配接和稳定功能使用闭口插座隔离器，用于将引脚触点导向到插座触点
插座触点位于隔离器深部，确保手指测试的安全性
金属外壳上有 5 个钥匙和钥匙凹槽，确保极化和触点校正配接
尺寸
---
**外壳尺寸** | **A** | **B** | **C** | **D**
13 | M18x1 | 21.2 | 8 | 46
16 | M22x1 | 25.5 | 12 | 49
21 | M26x1 | 29.7 | 14 | 53
25 | M30x1 | 33.8 | 18 | 56
