GFI 控制器,Fairchild Semiconductor接地故障电路中断器是低功率控制器,用于交流插座,它可检测到接地的危险电流路径和中性线接地故障。 然后,电路中断器可在出现有害或致命冲击前从电源线路断开负载。接地故障中断器 接地漏电探测器 需要较少调节和校准 ### 接地故障中断 GFI 控制器,Fairchild Semiconductor
Implement this specialized power IC from Semiconductor into your power management system to automate battery charging, voltage regulation, DC-to-DC conversion, AC-to-AC conversion, motor control and supervisory power tasks. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This USB PWM controller has a minimum operating temperature of -20 °C and a maximum of 80 °C.
电源电压DC 14.0V min
额定功率 5 mW
输出接口数 1
输出电流 800 µA
供电电流 400 µA
工作温度Max 80 ℃
工作温度Min -25 ℃
电源电压 12V ~ 20V
电源电压Max 18 V
电源电压Min 14 V
安装方式 Surface Mount
引脚数 8

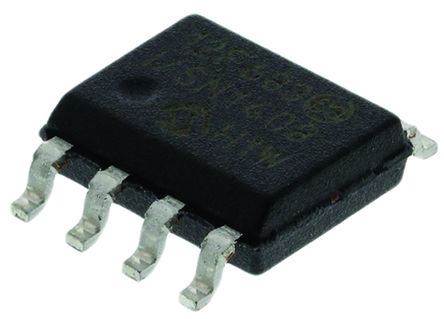

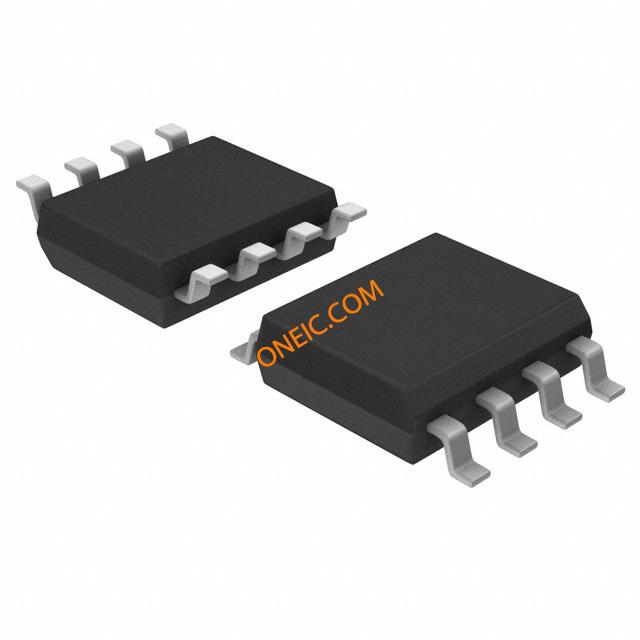

封装 SOP-8
长度 10.15 mm
宽度 6.35 mm
高度 3.3 mm
封装 SOP-8
工作温度 -25℃ ~ 80℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 接地漏电检测器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
KA2803BDTF Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
KA2803BD 飞兆/仙童 | 功能相似 | KA2803BDTF和KA2803BD的区别 |
ZGFI7101JBT Zilog | 功能相似 | KA2803BDTF和ZGFI7101JBT的区别 |
