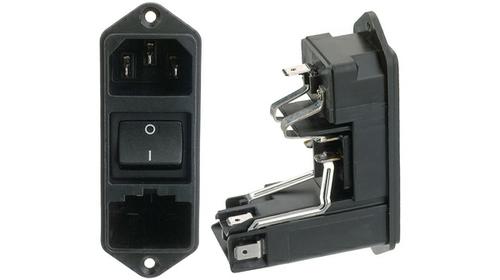

SCHURTER KD14.4101.151 电源入口插座, IEC, C14, KD, 10A
The is a fused power Entry Module without line filter, UL94V-0 black thermoplastic housing. Appliance inlet protection class I, line switch 2-pole, fuse holder with interchangeable fuse drawer for fuse-links 5x20 or 6.3x32mm and quick connect terminals 4.8 x 0.8mm. Screw-on version from front or rear side, snap-in version from front side panel mount.
- .
- Admissible power acceptance at higher ambient temperature see derating curves
- .
- IP40 Protection degree
- .
- -25 to 70°C Operating temperature range
触点数 3
极性 Male
触点电镀 Tin
额定电压DC 250 V
额定电流 10 A
触点类型 DPST
易燃性等级 UL 94 V-0
针脚数 3
额定电流Max 10 A
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压Max 250 VAC
额定电压 250 V
额定电压AC Max 250 V
安装方式 Quick Connect, Panel
封装 Module
长度 83.5 mm
宽度 30 mm
高度 83.5 mm
封装 Module
颜色 Black
工作温度 -25℃ ~ 70℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536698000
