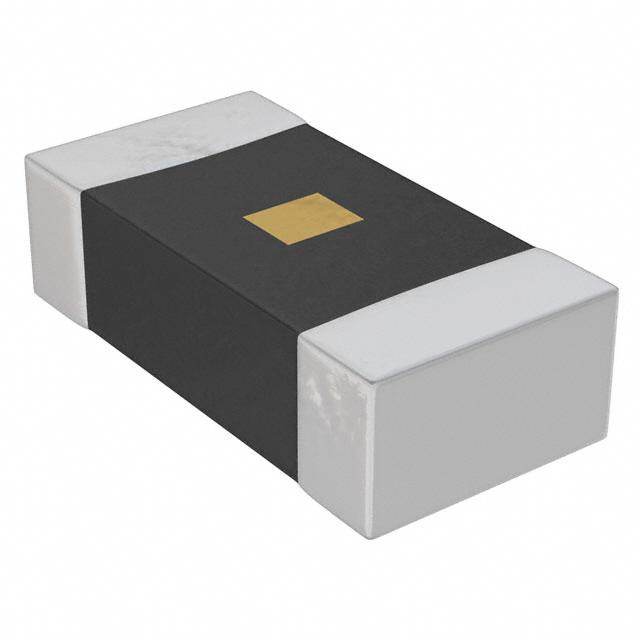

Res High Voltage 1210 3.9m Ohm 1/3W 1% SMD
3.9 MOhms ±1% 0.333W, 1/3W Chip Resistor 1210 3225 Metric Automotive AEC-Q200, High Voltage Thick Film
立创商城: 3.9MΩ ±1% 333.333mW
得捷: RES SMD 3.9M OHM 1% 1/3W 1210
容差 ±1 %
额定功率 0.333 W
电阻 3.9 MΩ
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
数据手册
