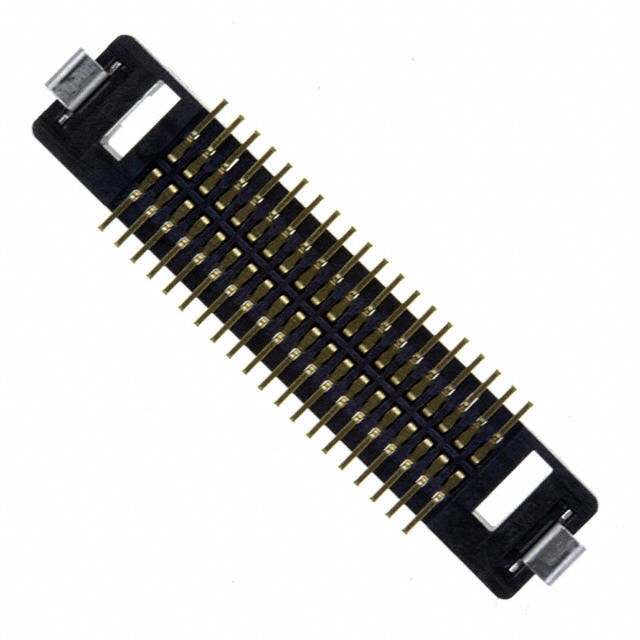

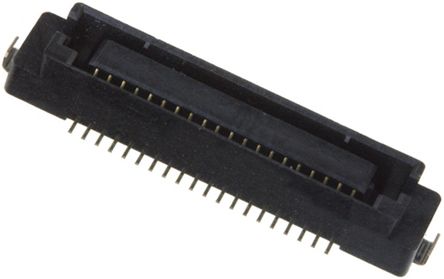

KX14-40K2D-RE

JAE KX14/KX15 0.80 mm SMT Board to Board Plug and Socket ConnectorsKX14/KX15 PCB SMT board to board plug and socket connectors with a 0.80 mm pitch and a low profile design. These connectors are designed to withstand vibration and twisting to ensure a reliable electrical connection. The housings feature a polarization key to prevent mis-mating and positioning bosses for accurate placement on the PCB. Hold downs on the connector provide a secure connection to PCB. These KX14/KX15 connectors can be used in combination for parallel and vertical board to board applications. A wide range of stacking heights can be achieved between 4 mm and 18 mm### Features and BenefitsLow profile design Resistant to vibration and twisting for reliable electrical connection Polarization key to prevent mismating Positioning bosses for accurate alignment on PCB Hold downs for secure connection on PCB Can achieve stacking heights between 4 mm and 18 mm ### ApplicationsThese KX14/KX15 SMT board to board connectors are ideal for use in applications where high density mounting is essential. Applications include video cameras, notebook computers, CD ROM and DVD ROM drives, mobile phones and other audio visual and information equipment ### 0.8mm 电路板到电路板 KX 系列 - JAE

JAE KX14/KX15 0.80 mm SMT Board to Board Plug and Socket Connectors

KX14/KX15 PCB SMT board to board plug and socket connectors with a 0.80 mm pitch and a low profile design. These connectors are designed to withstand vibration and twisting to ensure a reliable electrical connection. The housings feature a polarization key to prevent mis-mating and positioning bosses for accurate placement on the PCB. Hold downs on the connector provide a secure connection to PCB. These KX14/KX15 connectors can be used in combination for parallel and vertical board to board applications. A wide range of stacking heights can be achieved between 4 mm and 18 mm

### Features and Benefits

Low profile design

Resistant to vibration and twisting for reliable electrical connection

Polarization key to prevent mismating

Positioning bosses for accurate alignment on PCB

Hold downs for secure connection on PCB

Can achieve stacking heights between 4 mm and 18 mm

### Applications

These KX14/KX15 SMT board to board connectors are ideal for use in applications where high density mounting is essential. Applications include video cameras, notebook computers, CD ROM and DVD ROM drives, mobile phones and other audio visual and information equipment
