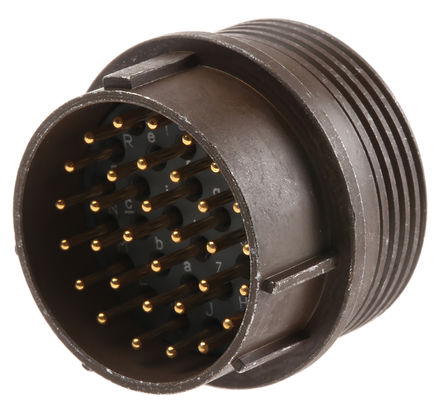

KPT06F18-32P

电缆安装此军用级电缆安装插头连接器具有连接快速可靠的卡口耦合以及电缆夹底壳。 非常耐用的连接器，适用于工业应用，该连接器提供各种外壳尺寸和触点配置。尺寸 mm --- **触点排列** | **L.** | **D.** | **最大缆线直径** 10-6P/S | 46 | 22 | 4.5 14-12P/S | 46 | 28 | 9.3 14-19P/S | 46 | 28 | 9.3 16-26P/S | 49 | 32 | 12.5 18-32P/S | 49 | 35 | 15.6 ### ITT KPT（橄榄色）符合 MIL-C-26482 的高质量多极连接器，带正向三点卡口耦合、焊接连接和镀金触点。 电缆安装型号包含电线和电缆夹，以消除应力和确保密封。 橄榄绿色镀铬处理镉涂层提供屏蔽的耐用表面。 能插接类似 MIL-C-26482 、带插入触点在“正常”方位的连接器。 这些连接器还提供自旋耦合底壳 - 请参阅库存号 241-1294（典型）。 总额定电流（每连接器） | 5A x 触点数 ---|--- 额定电流（每触点） | 7.5A 最大工作电压 | 700 Vac r.m.s. 或 850V 直流 击穿电压 | 最小 1.5kV 交流 触点电阻 | 7.5 A 时 7mΩ 在 500V 直流电压下的绝缘电阻 | 5´109Ω 温度范围 | -55 → +125°C 线规格，尺寸 16 触点 | 16-20 AWG 线规格，尺寸 20 触点 | 20-24 AWG

The from ITT Cannon is KPT series, MIL-DTL-26482 series I equivalent straight plug with 32 contacts. The KPT series miniature circular connectors conforms to meet the performance specification to MIL-DTL-26482 series I with a positive three point quick disconnect bayonet coupling, five keyway polarization and high insert arrangement contact density. These connectors are designed for harsh environments and have well-proven electrical capability to withstand extreme shock, exposure and vibration. The KPT series general purpose solder connectors are optimized for fast assembly featuring clip-in contact & insulator design. They are intermateable, intermountable and interchangeable with all MIL-DTL-26482 connectors. Design modifications can be achieved at low cost.

.

Bayonet coupling assures fast and reliable mating/unmating

.

Environmentally sealed, IP68 rated

.

Operating temperature range from -55°C to +125°C

.

Durability of 500 mating cycles

.

200m/s² at 10Hz to 2000Hz vibration

.

Insulation resistance is 5000Mohm at 25°C

.

Resilient polychloroprene neoprene insulator and grommet

.

Salt spray exposure of 500hour

.

Aluminium alloy body material with olive drab chromate over cadmium plating

.

Copper alloy solder pin contacts with gold plating
