SCHURTER KMF1.1291.11 电源入口滤波器, IEC, C14, KMF, 10A

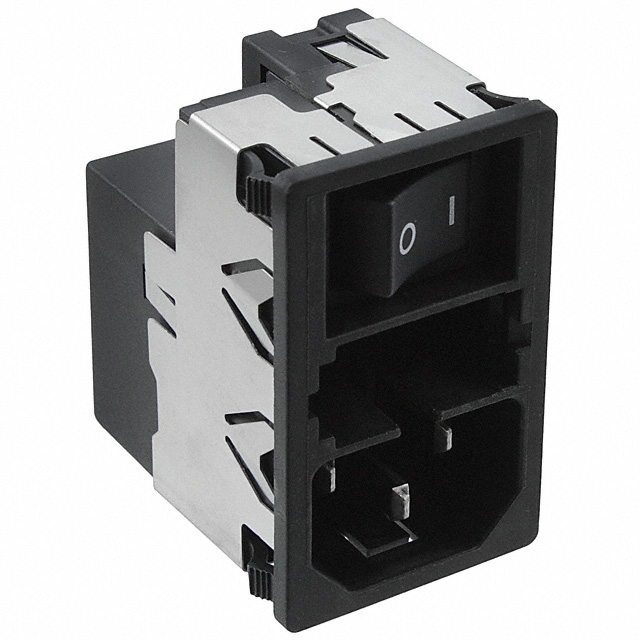

The is a non-illuminated snap-in panel mounting Power Entry Plug with quick-connect terminals and an UL94V-0 black thermoplastic housing. The standard version IEC appliance inlet module comes with 2-pole line switch and 1-pole fuse holder. It is suitable for use in equipment according to IEC/UL 60950 and medical equipment according to IEC/UL 60601-1.
- .
- Ultra-compact design
- .
- Small dimensions in front of and behind the panel
- .
- All single elements are already wired
- .
- Innovative EMC-shielding with flexible steel segments for an excellent contact
- .
- IP40 Protection rating
- .
- -25 to 85°C Operating temperature range
触点数 3
极性 Male
额定电压DC 250 V
额定电压AC 250 V
额定电流 10 A
电容 47 nF
易燃性等级 UL 94 V-0
针脚数 3
额定电流Max 10 A
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压Max 250 VAC
额定电压 250 VAC
额定电压AC Max 250 V
安装方式 Panel, Quick Connect
长度 50 mm
宽度 30.5 mm
高度 50 mm
工作温度 -25℃ ~ 85℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 电源管理, Power Management, Medical, 医用, Medical, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536698000
