KLBPS 3

LUMBERG  KLBPS 3  手机音频连接器, 插座, 6.35 mm, 3 触点, 底板安装, 金属主体, 镀银触芯

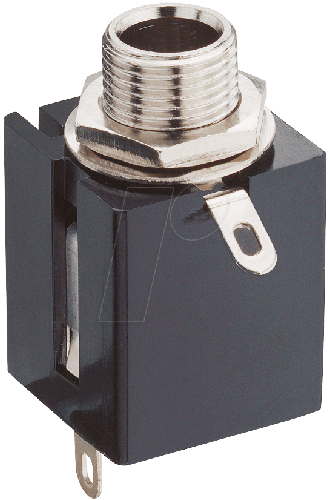

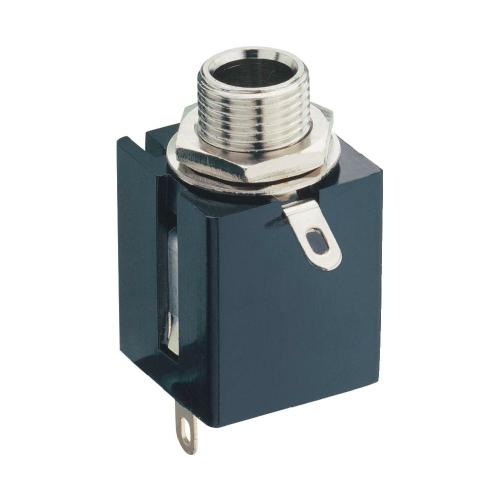

The is a 3-pole Stereo Audio Connector with break contact and solder eyes for back side mounting. UL94V-2 flame-rated polycarbonate insulating body, silver-plated contacts. The stereo jack chassis socket is suitable for use with KLS 3 and KLS 33 jack plugs. Designed according to the JIS C 6560 JC63J3Z standards.

.

5 to 40N Insertion force

.

5 to 40N Withdrawal force

.

>=10000 Mating cycles

.

* 2A Current rating

.

34VAC/DC Voltage rating

.

>=5 x 10⁷R Insulation resistance
