KF25BD

非常低压降稳压器与抑制 VERY LOW DROP VOLTAGE REGULATORS WITH INHIBIT

DESCRIPTION

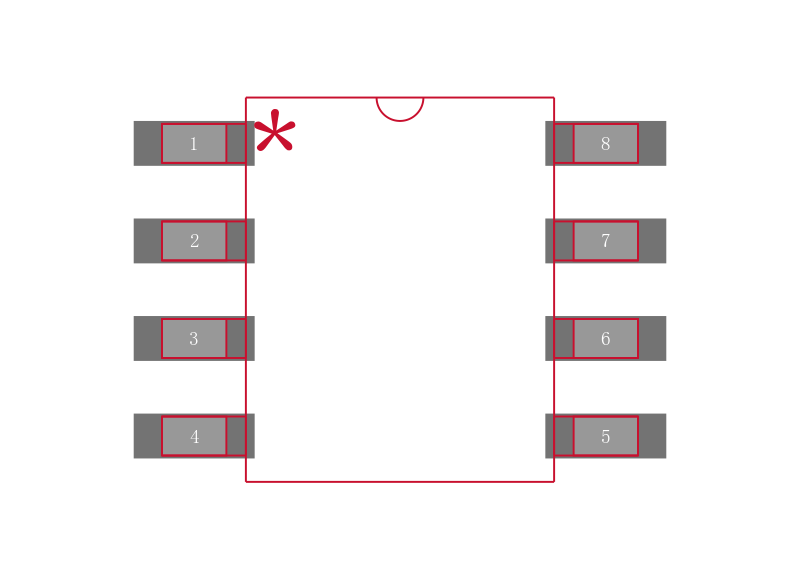

The KF00 series are very Low Drop regulators availablein SO-8 package and in a wide range of output voltages.

The very Low Drop voltage 0.4V and the very low quiescent current make them particularly suitable for Low Noise, Low Power applications and specially in battery powered systems.

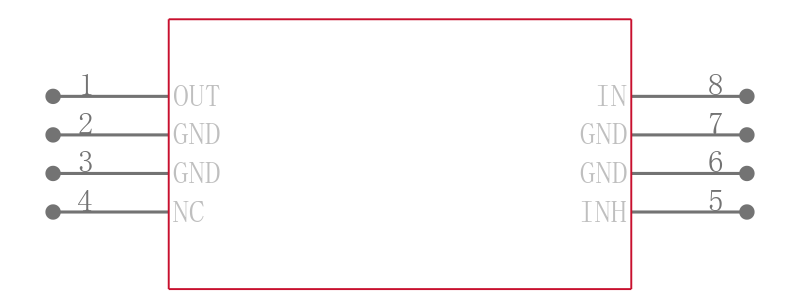

A Shutdown Logic Control function is available pin 5, TTL compatible. This means that when the device is used as a local regulator, it is possible to put a part of the board in standby, decreasing the total power consumption. It requires only a 2.2 µF capacitor for stability allowing space and cost saving.

■ VERY LOW DROPOUT VOLTAGE 0.4V

■ VERY LOW QUIESCENT CURRENT TYP. 50 µA IN OFF MODE, 500 µA IN ON MODE

■ OUTPUT CURRENT UP TO 500 mA

■ LOGIC-CONTROLLED ELECTRONIC SHUTDOWN

■ OUTPUT VOLTAGES OF 1.25; 1.5; 2.5; 2.7; 3; 3.3; 3.5; 4; 4.5; 4.7; 5; 5.2; 5.5; 6; 8; 8.5; 12V

■ INTERNAL CURRENT AND THERMAL LIMIT

■ ONLY 2.2 µF FOR STABILITY

■ AVAILABLE IN ± 2% ACCURACY AT 25 °C

■ SUPPLY VOLTAGE REJECTION: 70 db TYP.

■ TEMPERATURE RANGE: -40 TO 125 °C
