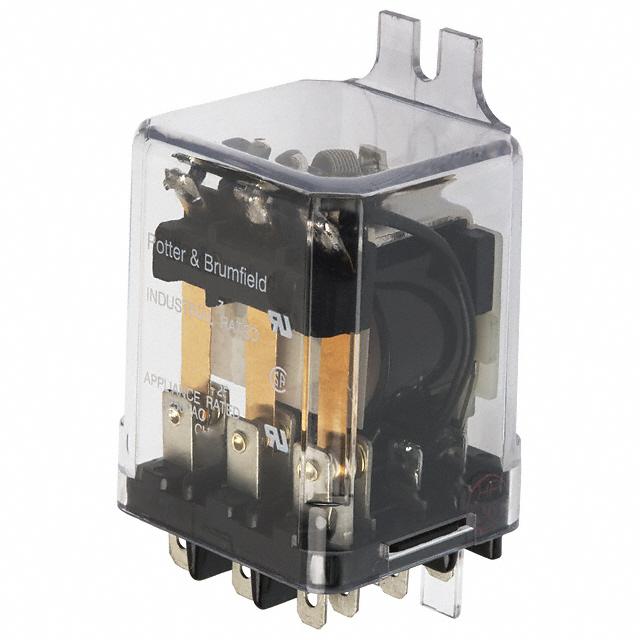

Electromechanical Relay DPST-NO 10A 120VAC 2.25KΩ Bracket Mount
Electromechanical Relay 120VAC 2.25KOhm 10A DPST-NO 73.7x38.89x55.55mm Bracket Industrial Relay
得捷:
RELAY GEN PURPOSE DPST 10A 120V
Chip1Stop:
Electromechanical Relay DPST-NO 10A 120VAC 2.25KOhm Bracket Mount
MASTER:
Electromechanical Relay 120VAC 2.25KOhm 10A DPST-NO 73.7x38.89x55.55mm Bracket Industrial Relay
Online Components:
Electromechanical Relay 120VAC 2.25KOhm 10A DPST-NO 73.7x38.89x55.55mm Bracket Industrial Relay
Electro Sonic:
Electromechanical Relay 120VAC 2.25KOhm 10A DPST-NO 73.7x38.89x55.55mm Bracket Industrial Relay
线圈电压 120 VAC
线圈电流 17.5 mA
线圈电压AC 120 V
线圈电阻 2.25 KΩ
额定电流Max 10 A
线圈功率 2.1 VA
额定电压DC Max 32 V
额定电压AC Max 240 V
安装方式 Quick Connect, Chassis
引脚数 6
长度 73.7 mm
宽度 38.89 mm
高度 55.55 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 55℃
产品生命周期 Obsolete
包装方式 Tray, Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410050
