KLBR 4

LUMBERG  KLBR 4  手机音频连接器, 3 触点, 插座, 3.5 mm, 电路板安装, 镀银触芯, 金属主体

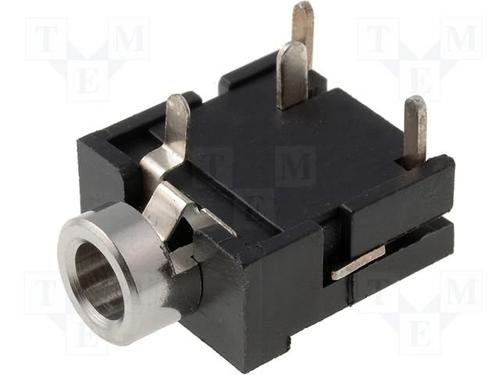

The from is a 3.5mm, 3pole stereo jack socket connector. The angular version jack chassis socket are according to JIS C 6560 JC35J3Z with break contacts for printed circuit boards.

.

Rated current of 1A

.

Rated voltage of 34VAC/VDC

.

Insulating body material is polybutylene Terephthalate, UL94-V0 rated

.

CuZn, nickel plated contact

.

Mating with KLS 40, KLS 44, WKLS 40 jack plugs

.

Temperature range from -30°C to 85°C

.

Dimensions LxWxD: 15.5 x 12 x 9mm
