KSF 系列 3N 操作力 银触点 密封 薄型 轻触开关
Soft Actuated Tact Switch
艾睿:

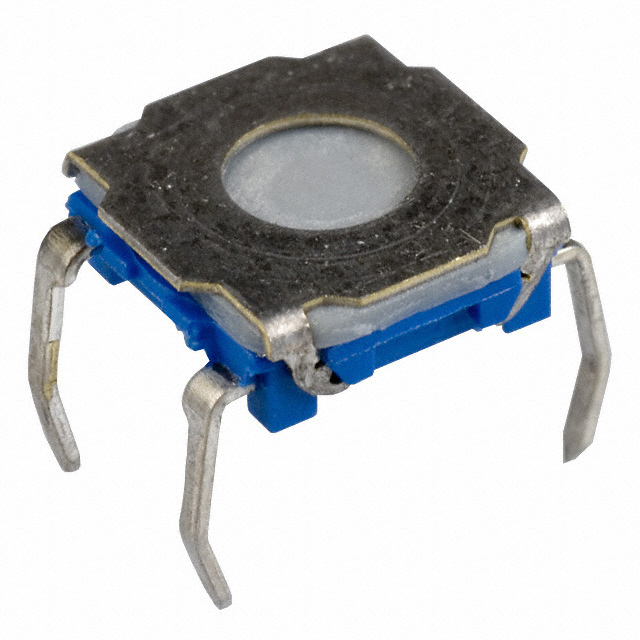

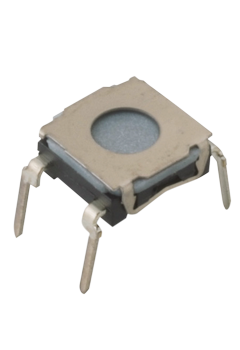

Wow! This low profile KSF0M411LFT tactile switch from C&a;K Components is easy for turning on your circuit with applied force. This device has a maximum current rating of 0.05. It has a SPST configuration. This tactile switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The KSF0M411LFT tactile switch has a PC pin termination style. The maximum DC voltage rating is 32 VDC. This product is 7.4 mm long, 2.6 mm tall and 9 mm deep. This flat round button actuator is 0 mm long.
富昌:
KSF 系列 3N 操作力 银触点 密封 薄型 轻触开关
Verical:
Switch Tactile N.O. SPST Flat Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 3N Thru-Hole Automotive Bulk
MASTER:
Soft Actuated Tact Switch
Online Components:
Soft Actuated Tact Switch
Electro Sonic:
Soft Actuated Tact Switch
触点电镀 Silver
额定电压DC 32 V
方向 Vertical
触点类型 SPST-NO
额定电流Max 0.05 A
额定功率Max 1 VA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 32 V
接触电阻Max <100 mΩ
安装方式 Through Hole
长度 7.40 mm
宽度 7.40 mm
高度 2.6 mm
触点材质 Silver
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536501199
