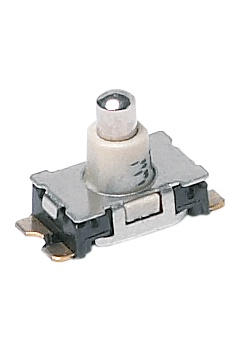

C & K COMPONENTS KSU213WLFG 探测器开关, KSU系列, SPST-常开, 焊接, 10 mA, 32 V, 5.1 mm
The is a single-pole single-throw SPST micro mini surface-mount Detect Switch with gull-wing termination, standard metal actuator, momentary action function and NO contact. The KSU series switch has gold contact. Infrared reflow solderability is compatible with lead free soldering process.
- .
- Low actuating force
- .
- Compatible with pick and place machines
- .
- 1.1N 110g Actuation force
触点电镀 Gold
额定电压DC 50 V
额定电压AC 50 V
额定电流 10mA AC, 10mA DC
绝缘电阻 1000 MΩ
触点类型 SPST-NO
接触电阻 100 mΩ
触点额定电流 10 mA
额定电流Max 0.01 A
额定功率Max 0.2 VA
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压DC Max 32 V
安装方式 Surface Mount
封装 SMD
长度 3.5 mm
宽度 7 mm
高度 5.1 mm
封装 SMD
触点材质 Gold
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, 通信与网络, 医用, 音频, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KSU213WLFG C&K Components | 当前型号 | 当前型号 |
KSR222GLFS C&K Components | 类似代替 | KSU213WLFG和KSR222GLFS的区别 |
KSR223GLFG C&K Components | 功能相似 | KSU213WLFG和KSR223GLFG的区别 |
KSR253GLFG C&K Components | 功能相似 | KSU213WLFG和KSR253GLFG的区别 |
