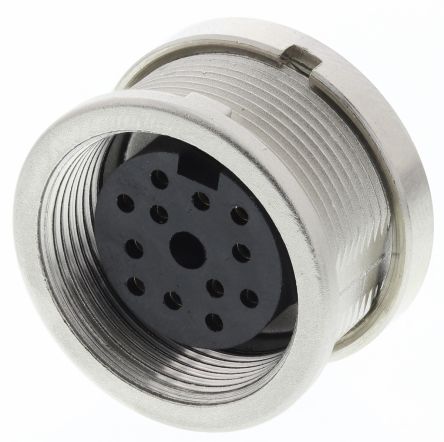

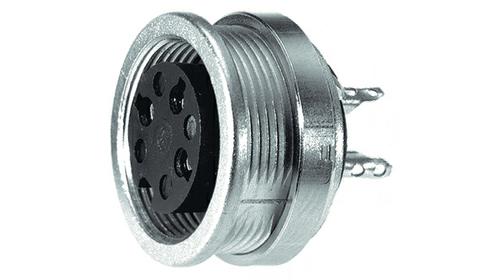

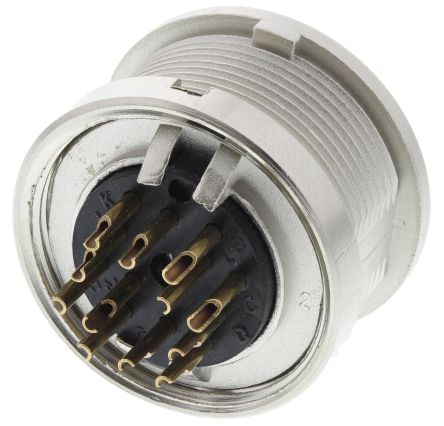

KFV 120

LUMBERG  KFV 120  连接器, DIN音频/视频, 插座, 12 触点, 面板安装, 塑料主体, 镀镍触芯

KFV 底盘插座

正面安装，带螺纹接头和焊接接线端子

533-2728 是 Domino 布局（四角带引脚和中间引脚）

Temperature range | -40°C → +85°C

---|---

Mates with | Plugs: SV

Contact resistance | ≤5 mΩ

Cable csa | 0.75mm2

\- except | 0.25mm2

### 标准

IEC60130-9

欧时:
DIN,Chassis,socket,12way,straight,KFV120

e络盟:
连接器, DIN音频/视频, 12 触点, 插座, 面板安装, 焊接, 镀镍触芯, 塑料主体

艾睿:
Conn DIN EN 60529 F 12 POS Solder ST Panel Mount 12 Terminal 1 Port Box

Allied Electronics:
Conn; Electrical; Pnl Receptacle; Socket Cont; 12 Cond; 12 Poles; Solder; 60V; 3A; IP40

安富利:
Conn DIN Circular SKT 12 POS Solder ST Panel Mount 12 Terminal 1 Port Cardboard

TME:
Connector: M16; female; IP40; socket; soldering; 60V; PIN:12; 3A

Newark:
# LUMBERG  KFV 120  DIN Audio / Video Connector, Socket, 12, Panel Mount, Plastic Body, Nickel Plated Contacts
