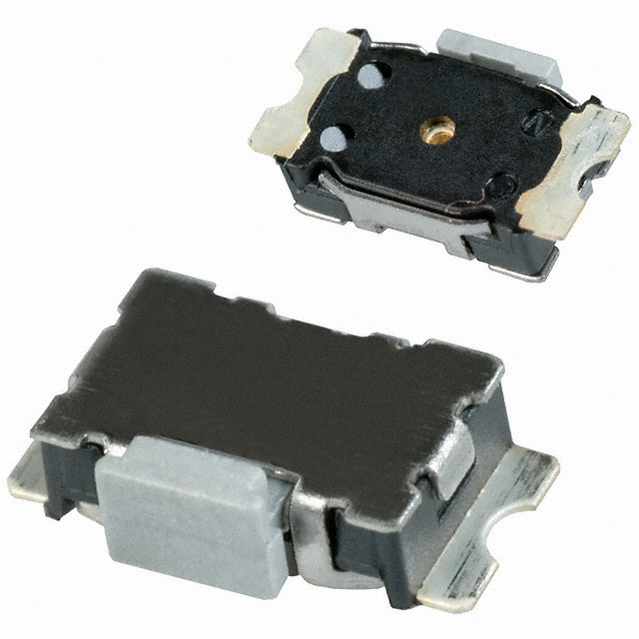

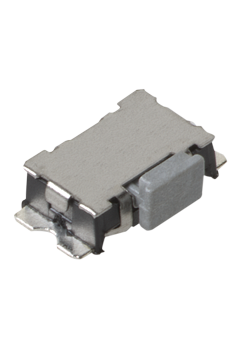

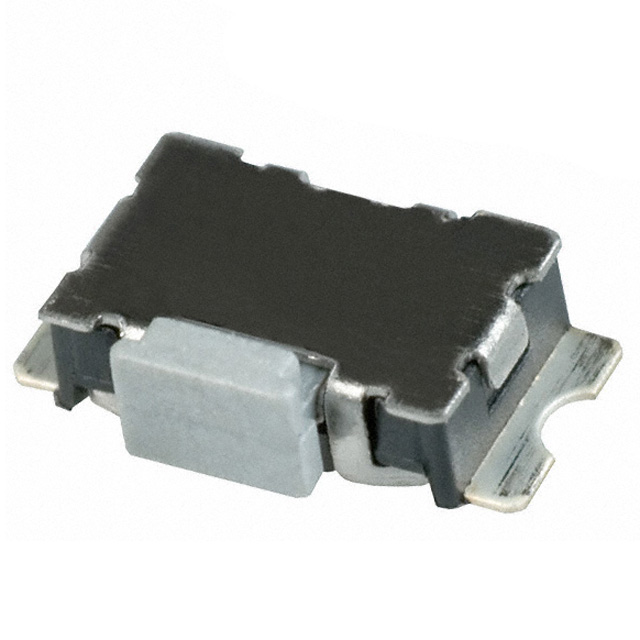

KSS 系列 次微型 侧面触动 单刀单掷 2 N 表面贴装 轻触开关
Features/Benefits
• Low profile of 1.6 mm
• Excellent tactile feel
• High shear force
• Range of actuation forces
• Large flat top
• Redundant contacts option
• IP 40 sealed
• RoHS compliant and compatible
Typical Applications
• Cellular phone
• PA, pagers
• Industrial electronics
• Health diagnostic electronics
立创商城:
KSS321GLFS
艾睿:
Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.05A 32VDC 1VA 100000Cycles 2N SMD T/R
Verical:
Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.05A 32VDC 1VA 100000Cycles 2N SMD T/R
MASTER:
Subminiature SMT Side Actuated
Online Components:
Subminiature SMT Side Actuated
Electro Sonic:
Subminiature SMT Side Actuated
Win Source:
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
触点电镀 Silver
额定电压DC 32 V
接触器类型 Standard
额定电流 50 mA
绝缘电阻 1000 MΩ
排数 1
方向 Right Angle
触点类型 SPST-NO
触点额定电流 50.0 mA
额定电流Max 0.05 A
额定功率Max 1 VA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 32 V
额定电压DC Max 32 V
安装方式 Surface Mount
封装 SMD
长度 7 mm
宽度 4.4 mm
高度 2.4 mm
封装 SMD
触点材质 Silver
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
KSS321GLFS C&K Components | 当前型号 | 当前型号 |
S321 C&K Components | 功能相似 | KSS321GLFS和S321的区别 |
SS32 C&K Components | 功能相似 | KSS321GLFS和SS32的区别 |
