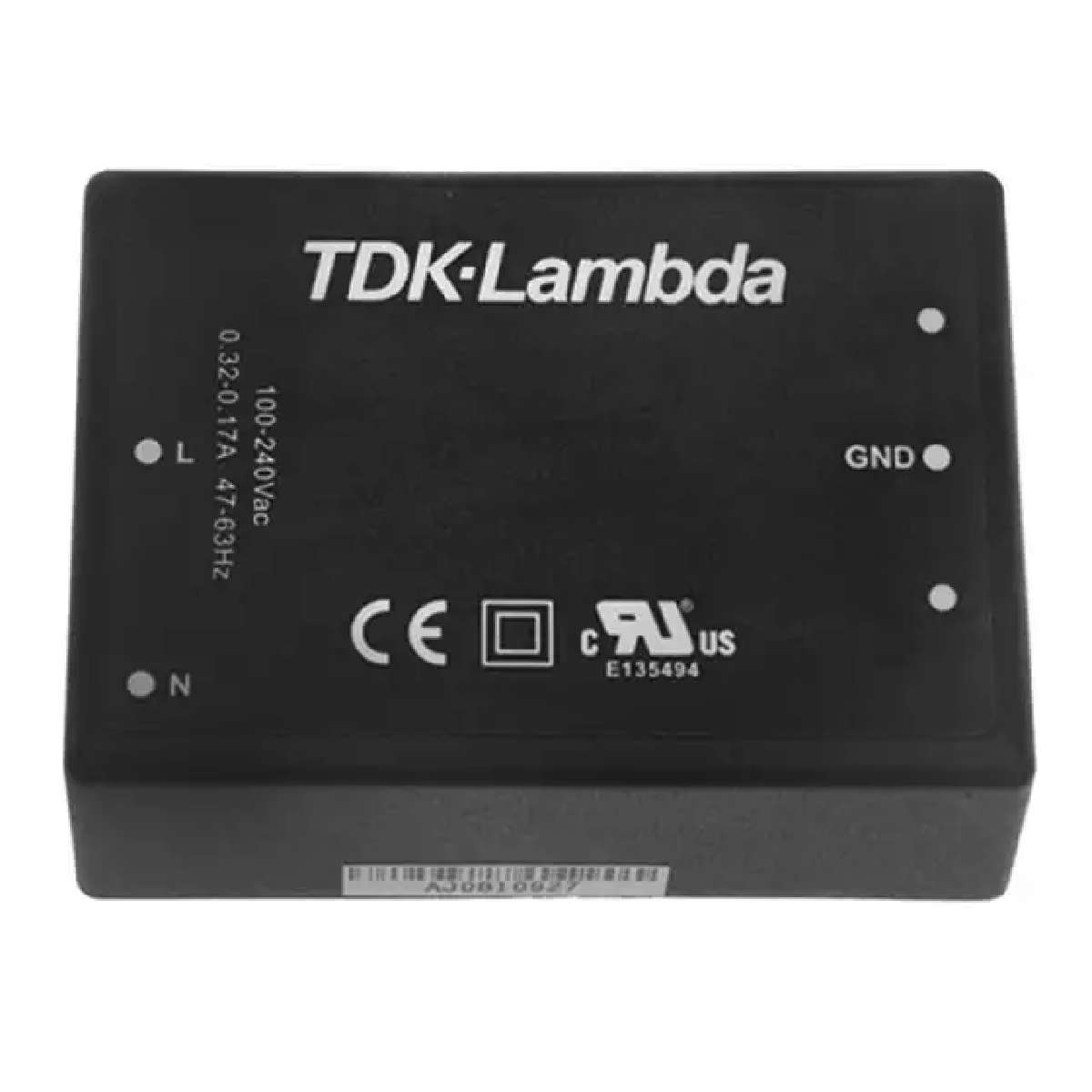

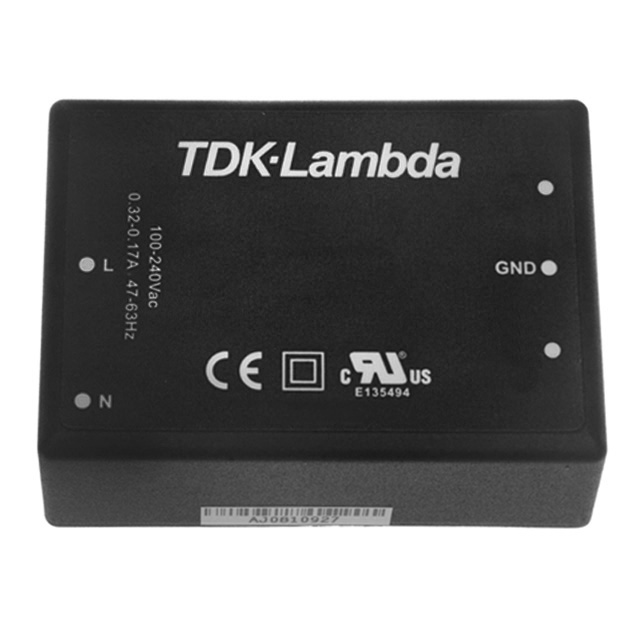

TDK LAMBDA KMD40-512 交流/直流电路板安装电源, 医用, 固定, 5V, 5A, 12V, 1.25A
The is a 2-output 40W PCB mount AC/DC power Supply designed for industrial applications that require robust, encapsulated, lightweight and compact power supplies, these sealed KM supplies resist dust and humidity. The Class II double insulated construction allows the product to be operated without an earth ground connection.
- .
- Small size and lightweight
- .
- Wide range input
- .
- High efficiency
- .
- Global use with no manual intervention
- .
- Lower heat dissipated in system
- .
- 132kHz Switching frequency
电源电压DC 264 V
额定功率 40 W
输出接口数 2
输出电压 5 V
输出电流 5 A
输出功率 40 W
输入电压DC Max 375 V
输入电压DC Min 100 V
输入电压AC Max 264 v
输入电压AC Min 90 v
输出电流Max 5A, 1.25A
输入电流Min 0.86 A
输出功率Max 40 W
工作温度Max 70 ℃
工作温度Min -25 ℃
电源电压 264 V
电源电压Max 264 V
电源电压Min 90 V
输入电压 90V ~ 264V
安装方式 Through Hole
引脚数 7
封装 DIP-7
长度 3.5 in
宽度 63.5 mm
高度 26.924 mm
封装 DIP-7
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 Test & Measurement, 医用型, Medical, Power Management, Automation & Process Control, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
