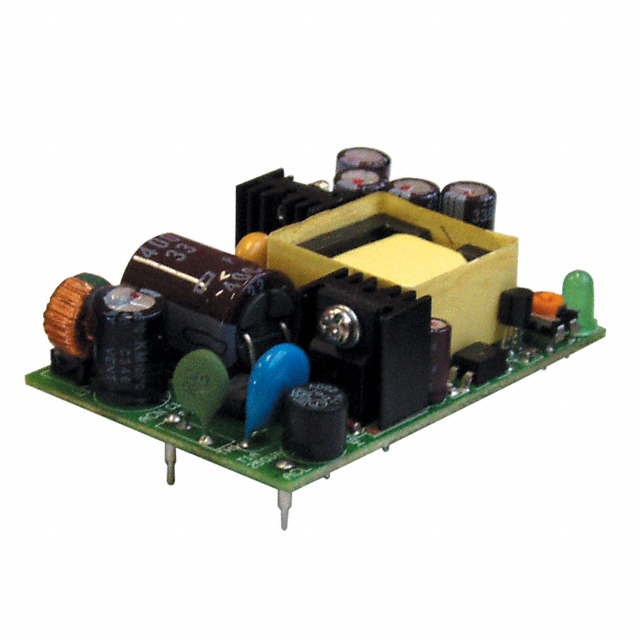

开关电源 15W 12V 1.25A PCB Mount 115-230VAC
With this AC to DC power supply from -Lambda your electronic device will be able to operate by using direct current instead of alternating current. It has a voltage of 12 V and maximum output power of 15 W. This part"s single output can handle a current up to 1.25 A. This part has a temperature range of 0 °C to 70 °C.
额定功率 15 W
输出接口数 1
输出电压 12 V
输出电流 1.25 A
输出功率 15 W
输入电压DC Max 370 V
输入电压DC Min 110 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 1.25 A
输入电流Min 0.4 A
输出功率Max 15 W
额定功率Max 15 W
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 85VAC ~ 264VAC
安装方式 Through Hole
引脚数 5
封装 DIP-4
长度 2.75 in
宽度 1.77 in
高度 0.79 in
封装 DIP-4
重量 80.29 g
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
KPSA1512 TDK 东电化 | 当前型号 | 当前型号 |
KPS1512 东电化 | 完全替代 | KPSA1512和KPS1512的区别 |
