KSZ8041FTL TR

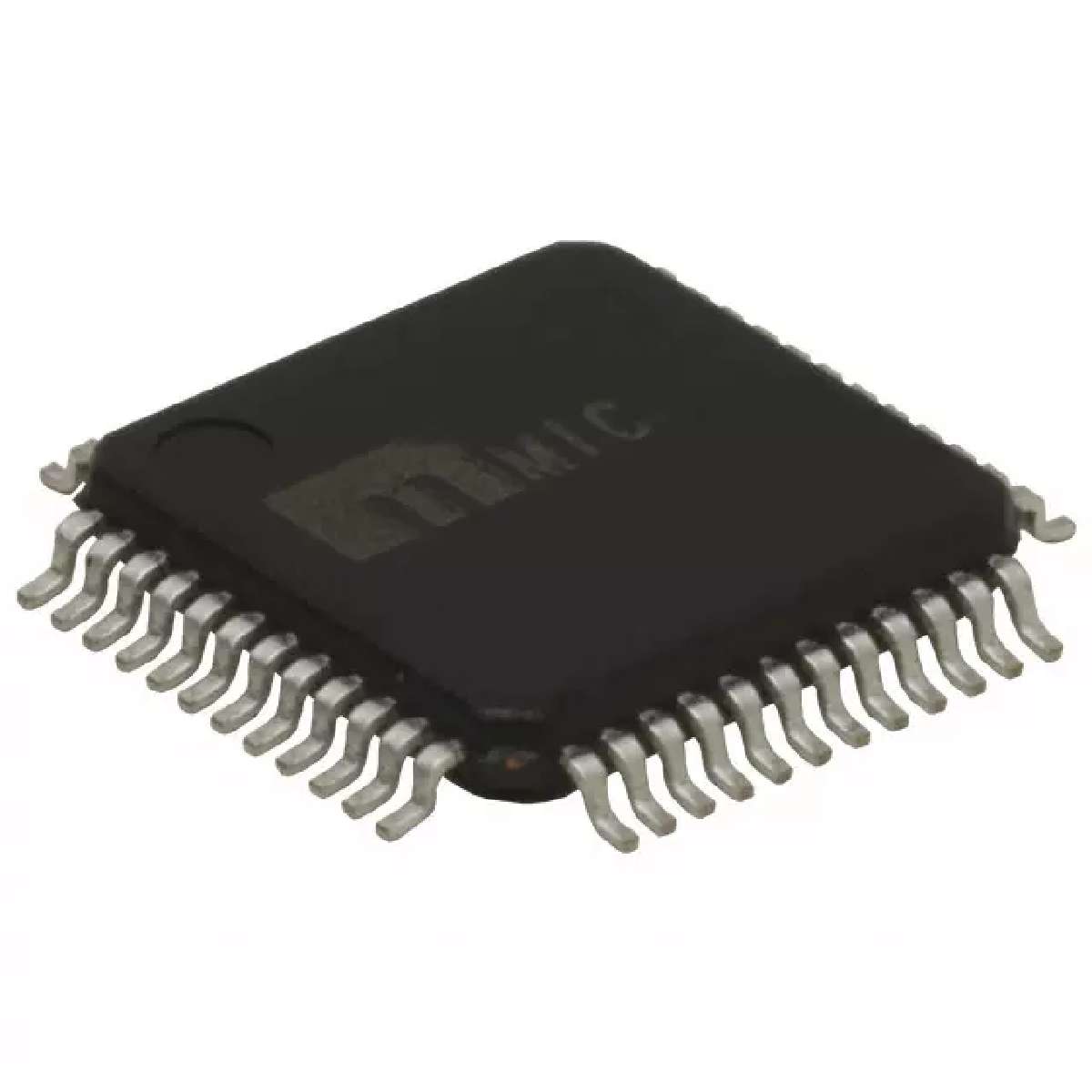

MICREL SEMICONDUCTOR KSZ8041FTL TR Ethernet Controller, 100Mbps, IEEE 802.3, IEEE 802.3u, 3.135V, 3.465V, TQFP, 48Pins

The is a single supply 10Base-T/100Base-TX Physical Layer Transceiver provides MII/RMII/SMII interfaces to transmit and receive data. It utilizes unique mixed-signal design to extend signalling distance while reducing power consumption. HP Auto MDI/MDI-X provides the most robust solution for eliminating the need to differentiate between crossover and straight-through cables. LinkMD® TDR-based cable diagnostics permit identification of faulty copper cabling. Physical layer transceiver, which provides MII/RMII/SMII interfaces to transmit and receive data. It utilizes unique mixed-signal design to extend signalling distance while reducing power consumption. HP Auto MDI/MDI-X provides the most robust solution for eliminating the need to differentiate between crossover and straight-through cables. Micrel LinkMD® TDR-based cable diagnostics permit identification of faulty copper cabling.

.

Fully compliant to IEEE 802.3u standard

.

Low power CMOS design, power consumption of <180mW

.

Robust operation over standard cables

.

Power down and power saving modes

.

Programmable LED outputs for link, activity and speed
