KD, Mounting:Snap-in, 1.5mm, Quick connect terminals 4.8 x 0.8mm, voltage selector: 2-4 digits, Fuse holder: 2Pole, Rocker switch, non-illuminated, 2Pole, Appliance Inlet: IEC C14, 250VAC, prewired, Suitable for appliances with protection class I

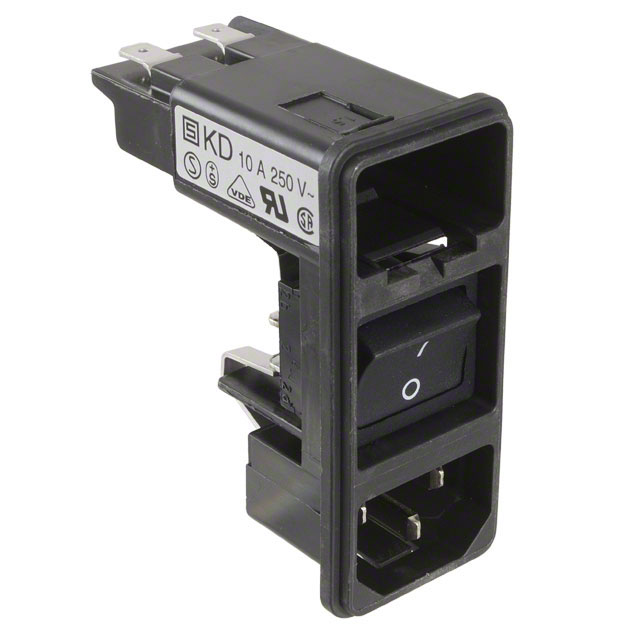

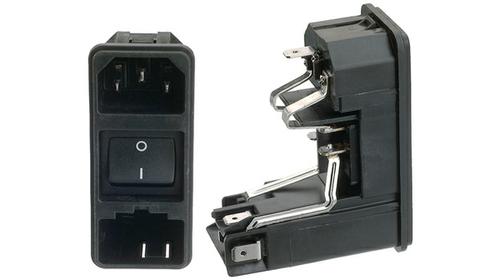

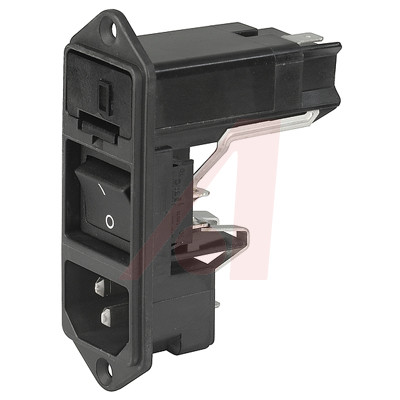

The KD series Power Entry Module without line filter. Screw-on version from front or rear side, snap-in version from front side panel mount. Appliance inlet protection class I, 2-pole line switch, fuse holder with interchangeable fuse drawer for fuse-links 5x20mm or 6.3x32mm, with or without voltage selector step functions. Suitable for use in equipment according to IEC/UL 60950.
- .
- 4.8 x 0.8mm Quick-connect terminals
- .
- All single elements are already wired
- .
- Fuse drawer Fingergrip can be removed by hand
触点数 3
极性 Male
触点电镀 Tin
额定电压DC 250 V
额定电流 10 A
触点类型 DPST
易燃性等级 UL 94 V-0
针脚数 3
额定电流Max 10 A
额定电压Max 250 VAC
额定电压 250 V
安装方式 Quick Connect, Panel
封装 Module
长度 69 mm
宽度 30 mm
高度 69 mm
封装 Module
工作温度 -25℃ ~ 70℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536698000
