KP01.1112.81

Conn Unfiltered PL 3POS 250V 15A ST 1Port

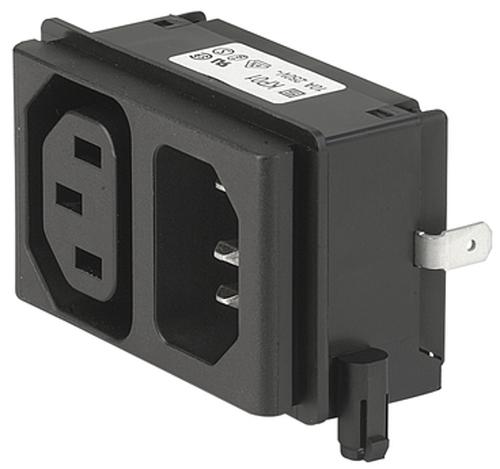

Power entry modules without line filter. IEC Appliance Inlet C14 with Line Switch 1- or 2-pole. Panel Mount: Sandwich/rear-side. 2 Functions: Appliance Inlet Protection class I, Line Switch 1- and 2- pole. For PCB mounting. Approvals: Approval Reference Type: KP01; VDE Certificate Number: 40029369; UL File Number: E96454; CSA File Number: 38456; CCC File Number: 2013010204592940. Panel mount from rear or "sandwich" between top and bottom/side to side panels PCB mount with snap-in or screw-on feet self tapping screws Φ 3 x 8 mm. All single elements are already wired. Line switch non-illuminated. Insulation cover on the rear-side. Suitable for use in equipment according to IEC/UL 60950.
