KD14.4101.107

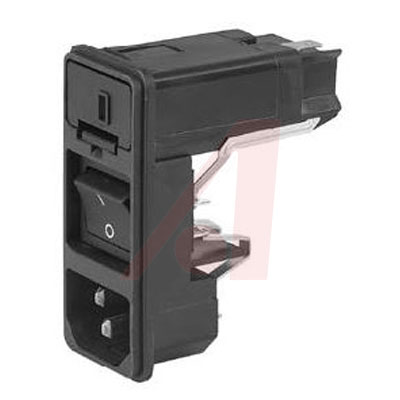

KD14.4101.107图片1
KD14.4101.107图片2
KD14.4101.107图片3
KD14.4101.107图片4
KD14.4101.107图片5
KD14.4101.107图片6
KD14.4101.107概述

C14 直向 插头 IEC 连接器, 快速连接端接, 熔断器尺寸5 x 20 mm, 6.3 x 32 mm, 额定10A, 125(UL 和 CSA)V 交流,250 IEC V 交流

DPST, 70 A 3-4 ms switch in-rush current. Terminals are 4.8 mm × 0.8 mm quick-connect. Series 4303/KD also available with series voltage selection, call for part numbers. Order fingergrip fuse drawers separately below. Series 6431 and 6432 have individual component modules soldered on a PCB; DPST On/Off line switch; fully insulated from the rear. Terminals are quick-connect 6.3 mm × 0.8 mm. Series 6431 has inlet/outlet/switch configuration. Series 6432 has inlet/outlet fuseholder/1-pole/switch configuration. Series 6424 has inlet/1- or 2-pole fuseholder/switch.

KD14.4101.107中文资料参数规格
技术参数

触点数 3

极性 Male

额定电压AC 250 V

额定电流 10 A

触点类型 DPST

针脚数 3

额定电流Max 10 A

额定电压Max 250 VAC

额定电压 250 VAC

封装参数

安装方式 Panel, Snap-In, Quick Connect

外形尺寸

高度 69 mm

物理参数

工作温度 -25℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2016/06/20

数据手册

在线购买KD14.4101.107
型号: KD14.4101.107
制造商: Schurter
描述:C14 直向 插头 IEC 连接器, 快速连接端接, 熔断器尺寸5 x 20 mm, 6.3 x 32 mm, 额定10A, 125(UL 和 CSA)V 交流,250 IEC V 交流
