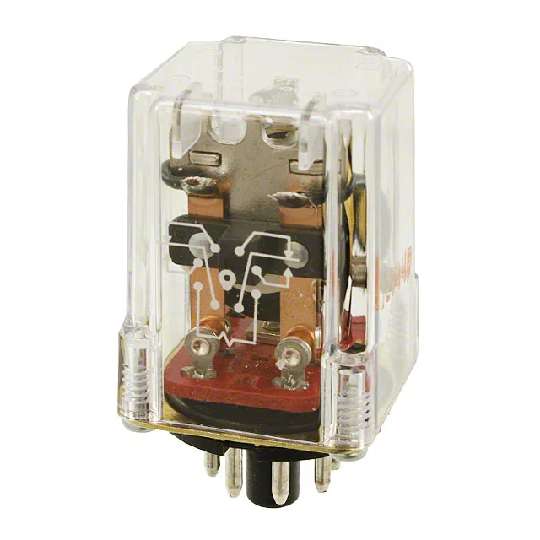

Electromechanical Relay 2.5KΩ 2A DPDT 35.71mm 35.71mm 50.8mm Socket Current Actuated Relay
Electromechanical Relay 2.5KOhm 2A DPDT 35.71mm 35.71mm 50.8mm Socket Current Actuated Relay
Product Highlights
KCP Series
Contact Arrangement = 2 Form C, DPDT
Contact Current Rating = 2 Amps.
Monostable Coil Magnetic System
Input Voltage = 120 VAC
艾睿:
Electromechanical Relay 2.5KOhm 2A DPDT35.71x35.71x50.8mm Socket Current Actuated Relay
Chip1Stop:
Electromechanical Relay 2.5KOhm 2A DPDT 35.71x35.71x50.8mm Socket Current Actuated Relay
Verical:
Electromechanical Relay 2.5KOhm 2A DPDT35.71x35.71x50.8mm Socket Current Actuated Relay
MASTER:
Electromechanical Relay 2.5KOhm 2A DPDT35.71x35.71x50.8mm Socket Current Actuated Relay
Online Components:
Electromechanical Relay 2.5KOhm 2A DPDT 35.71mm 35.71mm 50.8mm Socket Current Actuated Relay
Electro Sonic:
Electromechanical Relay 2.5KOhm 2A DPDT35.71x35.71x50.8mm Socket Current Actuated Relay
额定电压AC 120 V
触点类型 DPDT
触点额定电流 2 A
线圈电流 10.0 mA
线圈功率DC 250 mW
线圈电阻 2.5 kΩ
额定电流Max 2 A
线圈功率 250 mW
工作温度Max 70 ℃
工作温度Min -45 ℃
额定电压AC Max 120 V
安装方式 Plug In
引脚数 8
长度 35.71 mm
宽度 35.71 mm
高度 50.8 mm
触点材质 Silver
重量 82.2 g
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
