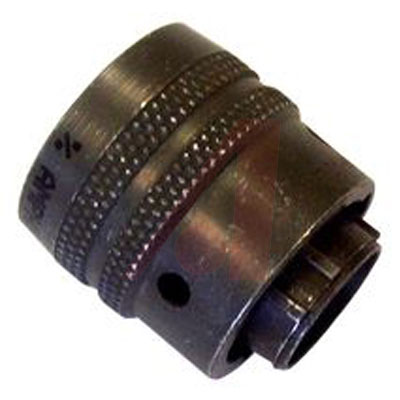

KPT06F10-6S

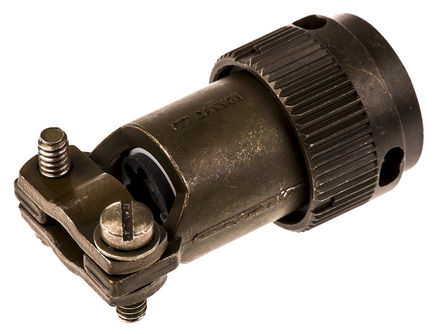

电缆安装此军用级电缆安装插头连接器具有连接快速可靠的卡口耦合以及电缆夹底壳。 非常耐用的连接器，适用于工业应用，该连接器提供各种外壳尺寸和触点配置。尺寸 mm --- **触点排列** | **L.** | **D.** | **最大缆线直径** 10-6P/S | 46 | 22 | 4.5 14-12P/S | 46 | 28 | 9.3 14-19P/S | 46 | 28 | 9.3 16-26P/S | 49 | 32 | 12.5 18-32P/S | 49 | 35 | 15.6 ### ITT KPT（橄榄色）符合 MIL-C-26482 的高质量多极连接器，带正向三点卡口耦合、焊接连接和镀金触点。 电缆安装型号包含电线和电缆夹，以消除应力和确保密封。 橄榄绿色镀铬处理镉涂层提供屏蔽的耐用表面。 能插接类似 MIL-C-26482 、带插入触点在“正常”方位的连接器。 这些连接器还提供自旋耦合底壳 - 请参阅库存号 241-1294（典型）。 总额定电流（每连接器） | 5A x 触点数 ---|--- 额定电流（每触点） | 7.5A 最大工作电压 | 700 Vac r.m.s. 或 850V 直流 击穿电压 | 最小 1.5kV 交流 触点电阻 | 7.5 A 时 7mΩ 在 500V 直流电压下的绝缘电阻 | 5´109Ω 温度范围 | -55 → +125°C 线规格，尺寸 16 触点 | 16-20 AWG 线规格，尺寸 20 触点 | 20-24 AWG

High performance environmental, miniature circular crimp connectors, designed for the exacting requirements of today"s electronic industry. They are intermateable, intermountable and

interchangeable with all connectors manufactured

acc. to MIL-C-26482 and VG95328.

艾睿:
Use this miniature circular KPT06F-10-6S connector from ITT for your cylindrical cable housing connection needs. It has a plug type gender. It has a straight body orientation. Its shell size is 10-6. This socket type connector&s;s 6 contacts that are made out of copper alloy and plated with gold. This device has a maximum current rating of 7.5 A. It uses the solder termination method. This product is 48.41 mm long with a diameter of 23.52 mm. This circular connector has an operating temperature of -55 to 125 °C.

安富利:
Conn MIL-C-26482 Circular SKT 6 POS Solder ST Cable Mount 6 Terminal 1 Port

Newark:
# ITT CANNON  KPT06F10-6S  Circular Connector, KPT Series, Straight Plug, 6 Contacts, Solder Socket, Bayonet, 10-6
