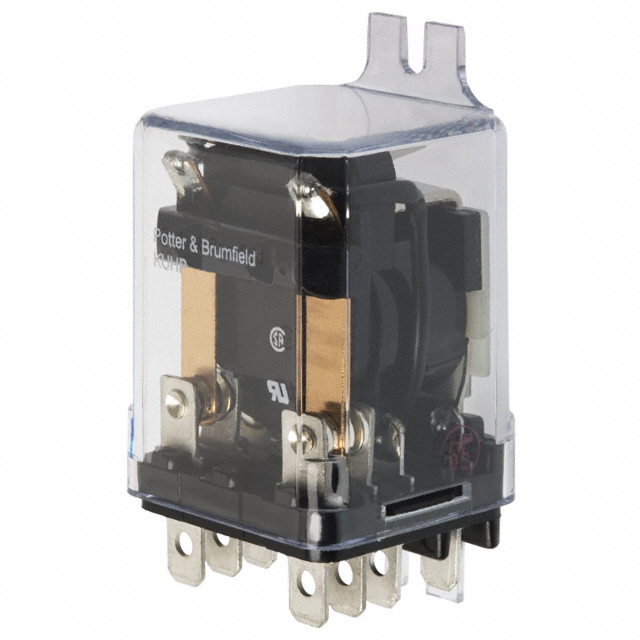

通用继电器 DPDT 20A 48VDC RELAY POWER
Power Relay 48VDC 20A DPDT73.66x35.71x38.89mm Bracket
Product Highlights
KUHP Series
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 20 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
贸泽:
通用继电器 DPDT 20A 48VDC RELAY POWER
艾睿:
Electromechanical Relay 48VDC 1.8KOhm 20A DPDT35.71x38.89x73.66mm Bracket Industrial Relay
Allied Electronics:
KUHP-11D51-48=KU, 7-1393114-9
Chip1Stop:
Electromechanical Relay 48VDC 1.8KOhm 20A DPDT 73.66mm 35.71mm 38.89mm Bracket Power Relay
Verical:
Power Relay 48VDC 20A DPDT 73.66mm 35.71mm 38.89mm Bracket Mount
MASTER:
Power Relay 48VDC 20A DPDT50x38.9x35.7mm Bracket
Online Components:
Power Relay 48VDC 20A DPDT73.66x35.71x38.89mm Bracket
ICbanQ:
General Purpose / Industrial Relays DPDT 20A 48VDC RELAY POWER
Electro Sonic:
Power Relay 48VDC 20A DPDT50x38.9x35.7mm Bracket
额定电压AC 240 V
输入电压DC 48.0 V
触点类型 DPDT
功耗 1.3 W
触点额定电流 20 A
线圈电压 48 V
线圈电流 26.7 mA
线圈功率DC 1.20 W
线圈电阻 1.8 KΩ
线圈电压DC 48 V
开关电流Max 20 A
工作温度Max 70 ℃
工作温度Min -45 ℃
安装方式 Panel
长度 38.9 mm
宽度 35.7 mm
高度 38.89 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
