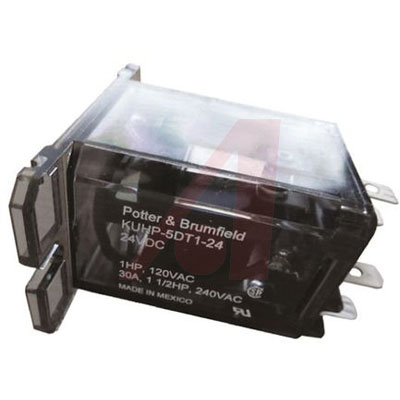

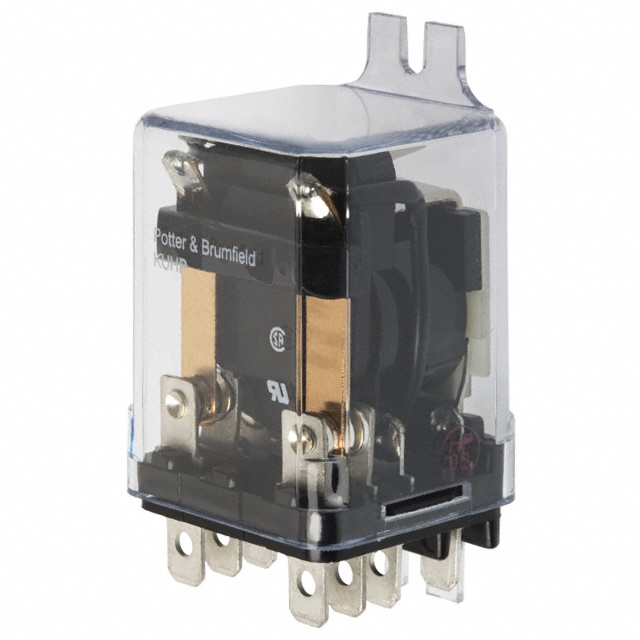

TE CONNECTIVITY / POTTER & BRUMFIELD KUHP-5DT1-24 功率继电器
General Purpose Industrial Relay
* The contact arrangement is 1 Form C, SPDT, 1 C/O
The coil resistance of the relay is 472 Ohms.
得捷:
RELAY GEN PURPOSE SPDT 30A 24V
立创商城:
24VDC 30A 无锁存
贸泽:
General Purpose Relays SP 30A TP FLNG 24VDC
e络盟:
继电器, SPDT, 240VAC, 28VDC, 30A
艾睿:
Electromechanical Relay 24VDC 472Ohm 30A SPDT60.5x35.38x62.51mm Flange Industrial Relay
Allied Electronics:
Relay; E-Mech; Power; SPDT; Cur-Rtg 30A; Ctrl-V 24DC; Vol-Rtg 120/240AC; Top Flange Mnt
安富利:
Electromechanical Relay SPDT 30A 24VDC 472Ohm Flange Mount
Chip1Stop:
Electromechanical Relay SPDT 30A 24VDC 472Ohm Flange Mount
Verical:
Electromechanical Relay 24VDC 472Ohm 30A SPDT60.5x35.38x62.51mm Flange Industrial Relay
MASTER:
Power Relay 24VDC 30A SPDT 60.5mm 35.38mm 62.51mm Flange
Online Components:
Power Relay 24VDC 30A SPDT 60.5mm 35.38mm 62.51mm Flange
Electro Sonic:
Electromechanical Relay 24VDC 472Ohm 30A SPDT60.5x35.38x62.51mm Flange Industrial Relay
额定电压DC 24.0 V
额定电压AC 240 V
额定电流 30 A
额定功率 1.20 W
输入电压DC 24.0 V
触点类型 SPDT
功耗 1.2 W
触点额定电流 30 A
线圈电压 24 VDC
线圈电流 51 mA
线圈功率DC 1.20 W
线圈电阻 472 Ω
载流 30.0 A
额定电流Max 30 A
线圈电压DC 24 V
线圈功率 1.23 W
开关电流Max 30 A
工作温度Max 70 ℃
工作温度Min -45 ℃
额定电压 240 VAC
安装方式 Panel
引脚数 9
封装 120
长度 38.9 mm
宽度 35.7 mm
高度 48.4 mm
封装 120
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Not Applicable
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
